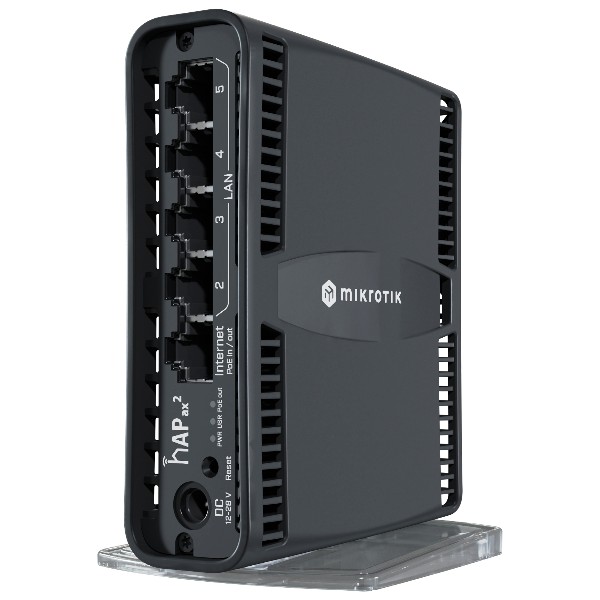

hAP ax² A Generation 6 version of the legendary hAP ac². With PoE-in and PoE-out, much faster wireless, more RAM, and a modern CPU.
The modern quad-core CPU running at 864 MHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with the most advanced RouterOS features.
And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

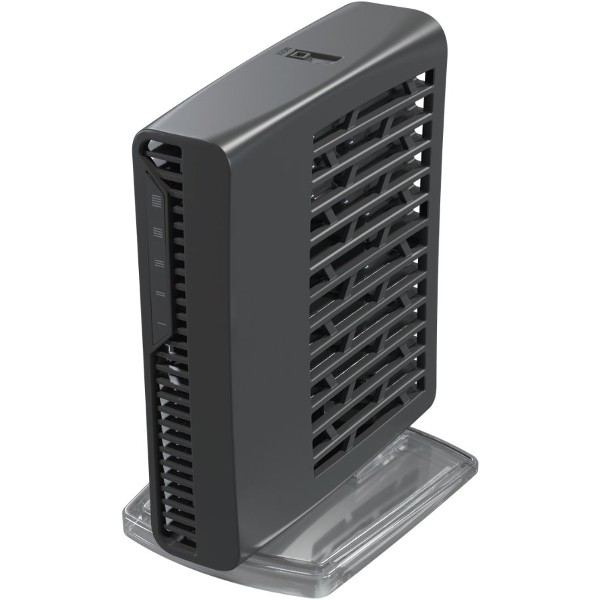

Like the previous models, hAP ax2 can be mounted vertically, horizontally, or even on the wall – without sacrificing the strong signal.
|
Specifications |
|
Product code |
C52iG-5HaxD2HaxD-TC |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-6010 |
|
CPU core count |
4 |
|
CPU nominal frequency |
864 MHz |
|
RouterOS license |
4 |
|
Operating System |
RouterOS (v7 only) |
|
Size of RAM |
1 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 50°C |
|
Wireless capabilities
|
|
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
4.5 |
|
Wireless 2.4 GHz chip model |
QCN-5022 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
1200 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
4 |
|
Wireless 5 GHz chip model |
QCN-5052 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
WiFi speed |
AX1800 |
|
Ethernet
|
|
10/100/1000 Ethernet ports |
5 |
|
Number of 1G Ethernet ports with PoE-out |
1 |
|
Powering |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-28 V |
|
Max power consumption |
27 W |
|
Max power consumption without attachments |
12 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
18-28 V |
|
PoE-out
|
|
PoE-out ports |
Ether 1 |
|
PoE out |
Passive PoE |
|
Max out per port output (input 18-30 V) |
600 mA |
|
Max total out (A) |
0.6 A |
|
Total output current |
0.6 |
|
Total output power |
16.8W |
|
Certification & Approvals
|
|
Certification |
CE, FCC, IC, EAC, ROHS |

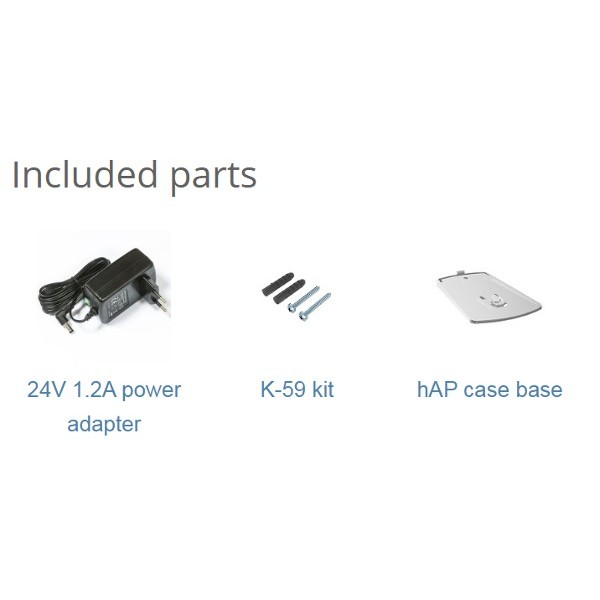

| Package Contents: |
|---|
| 1 x hAP ax2
|
| 1 x 24V 1.2A power adapter
|
| 1 x hAP case base
|
| 1 x K-59 kit |
|
