NetBox 5 ax - A Wi-Fi 6 upgrade of the popular NetBox 5. AP/CPE/Point-to-point, PoE-in, DC jack, Gigabit Ethernet, outdoor enclosure, Wi-Fi-6 5GHz wireless.

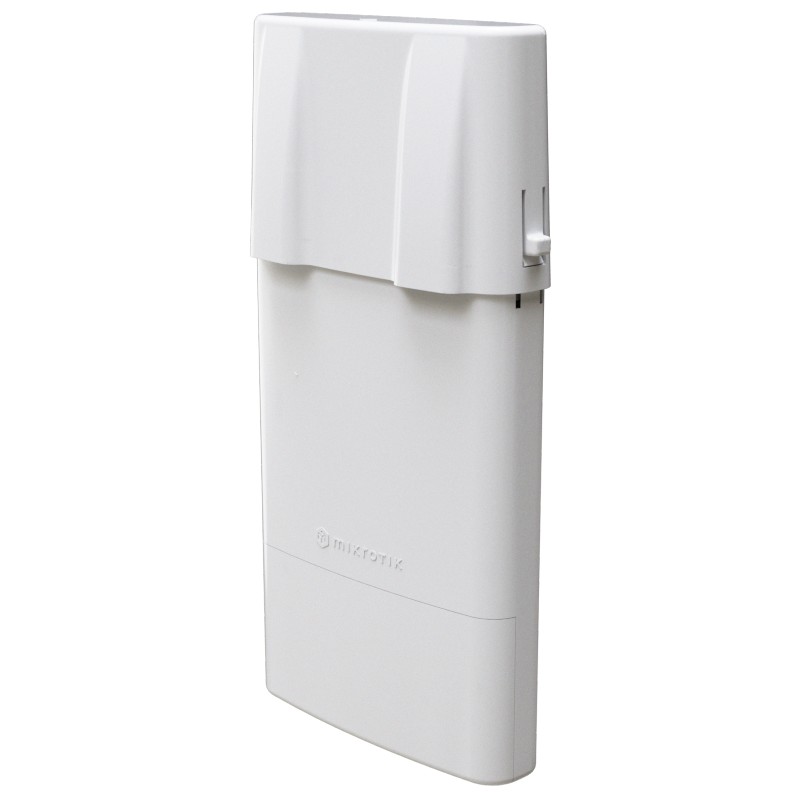

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point.

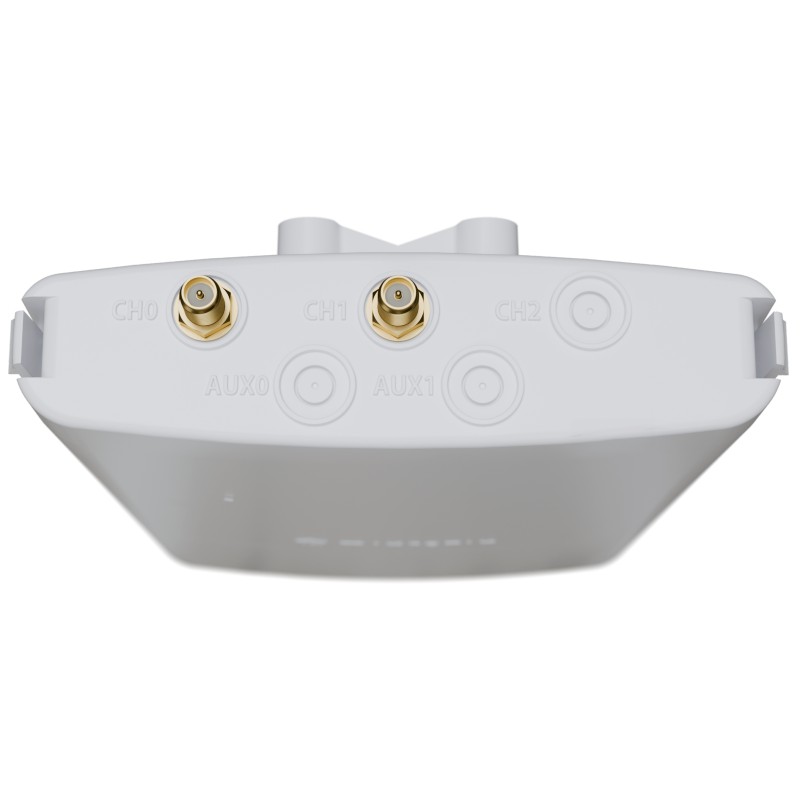

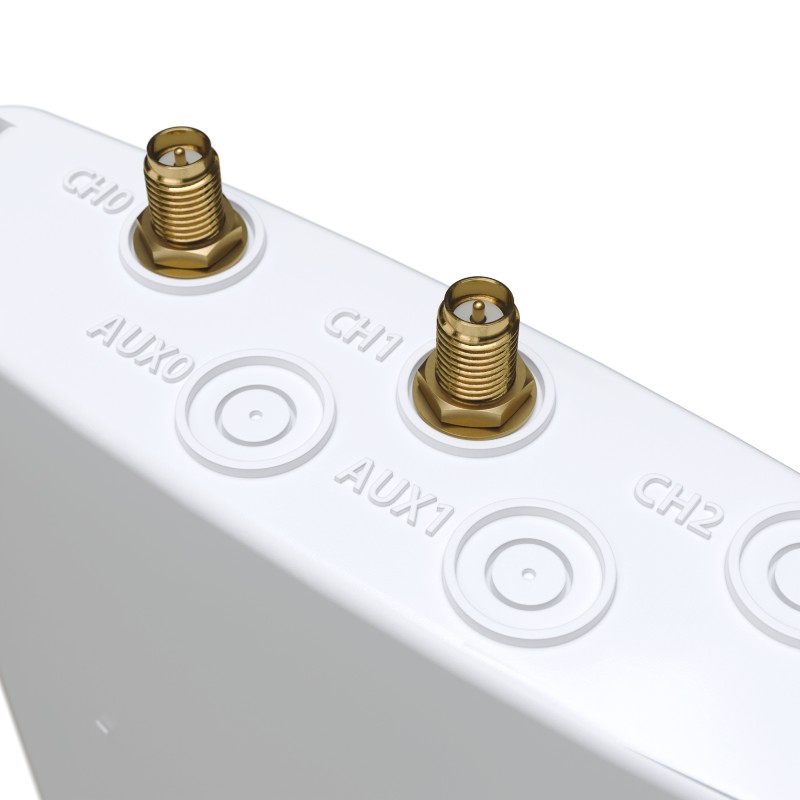

The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

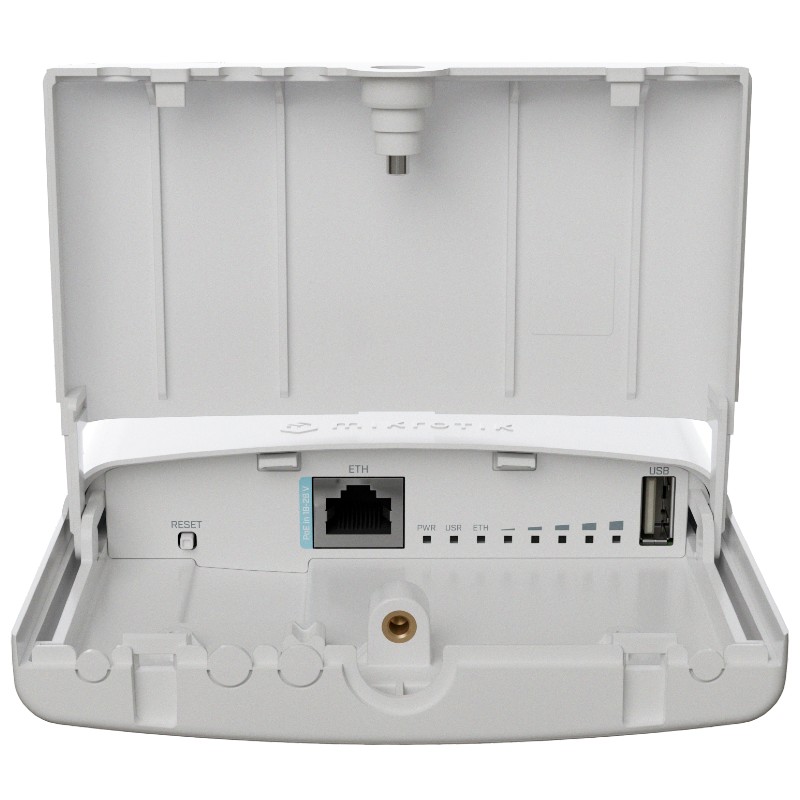

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet.
Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
|
Specifications |
|
Product code |
L11UG-5HaxD-NB |
|
Architecture |
ARM |
|
CPU |
IPQ-5010 |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
RouterOS license |
4 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
256 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF Approximately |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to +70°C |
|
Powering |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
15 W |
|
Max power consumption without attachments |
6 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
18-28 V |
|
Wireless specifications |
|
Wireless 5 GHz Max data rate |
2400 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Wireless 5 GHz chip model |
QCN-6102 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Details |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1.5 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Beeper |
Yes |
|
Certification & Approvals |
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
IP |
54 |

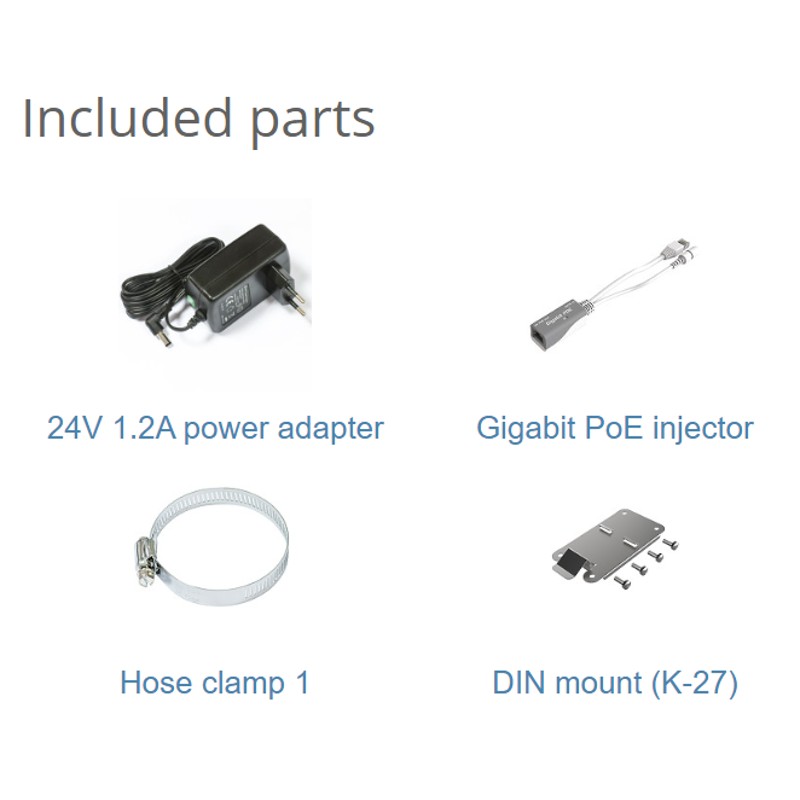

| Package Contents: |
|---|
| 1 x NetBox 5 ax
|
| 1 x Mounting Kit (K-27)
|
| 1 x 24V 1.2A power adapter
|
| 1 x Metal ring
|
| 1 x Gigabit PoE injector |
|
