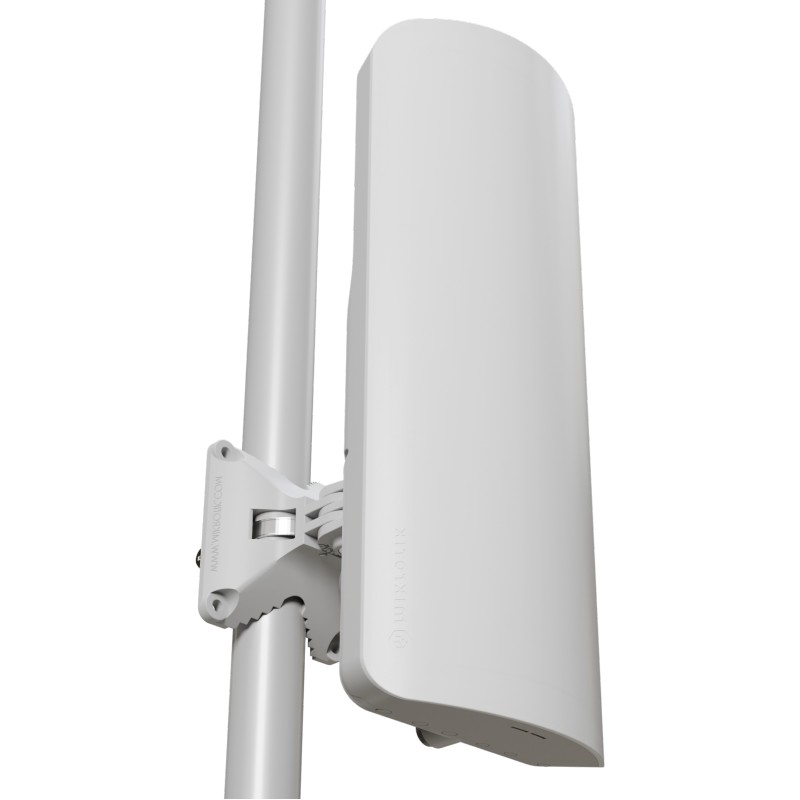

mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!
Our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level!

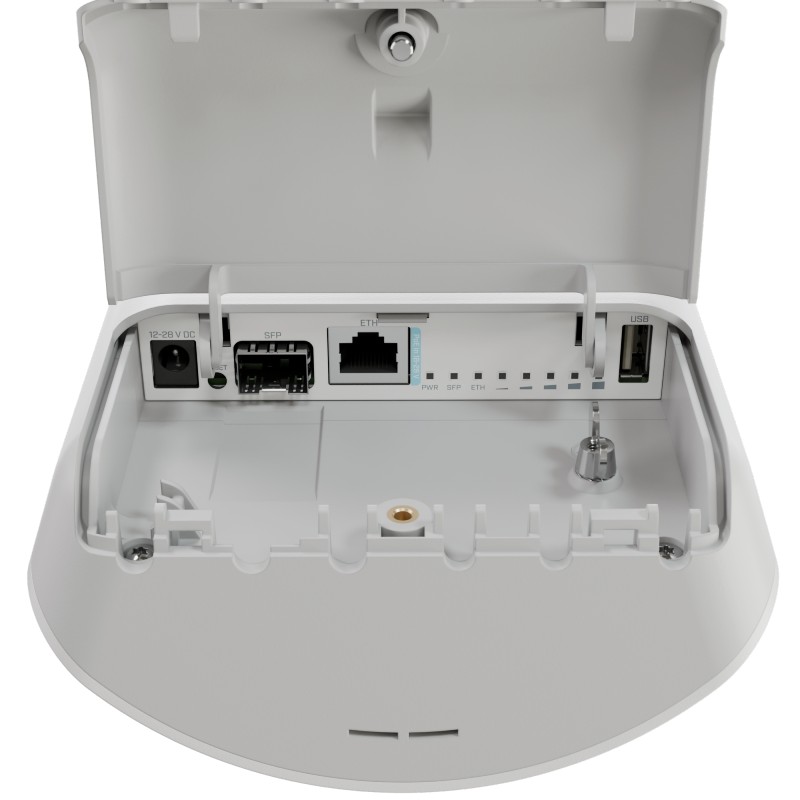

There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits: Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points.
Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run.
|
Specifications |
|
Product code |
L22UGS-5HaxD2HaxD-15S |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-5010 |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
RouterOS license |
4 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
256 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF Approximately |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-28 V |
|
Max power consumption |
21 W |
|
Max power consumption without attachments |
11 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
18-28 V |
|
Wireless specifications |
|
Wireless 2.4 GHz Max data rate |
574 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
12 |
|
Wireless 2.4 GHz chip model |
IPQ-5010 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
2400 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
15 |
|
Wireless 5 GHz chip model |
QCN-6102 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
SFP ports |
1 (2.5G supported) |
|
Peripherals |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1.5 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Beeper |
Yes |
|
Certification & Approvals |
|
Certification |
CE, FCC, IC, EAC, ROHS |
|
IP |
55 |

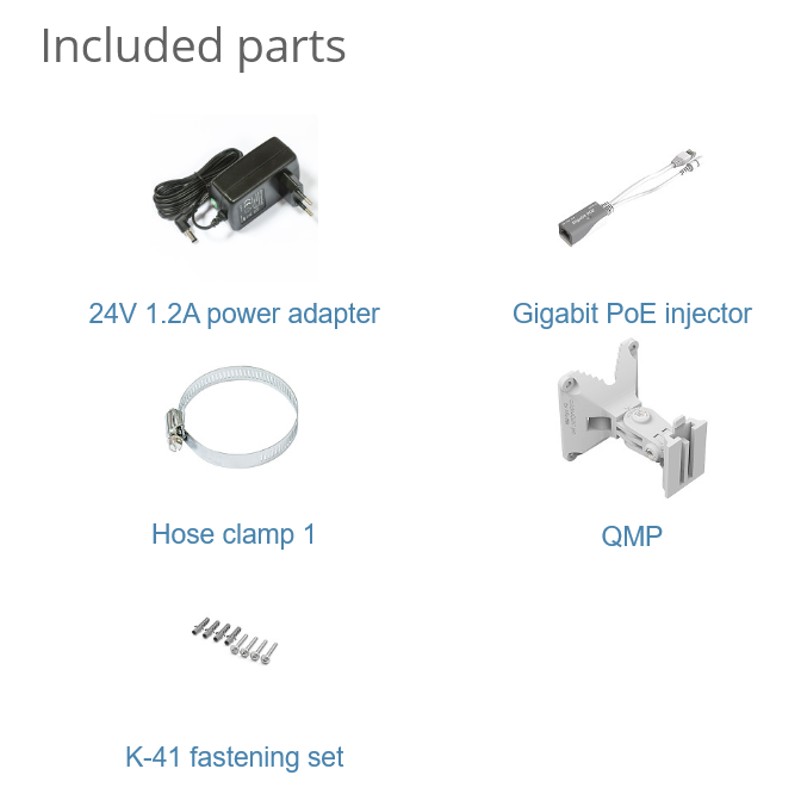

| Package Contents: |
|---|
| 1 x mANTBox ax 15s
|
| 1 x 24V 1.2A power adapter
|

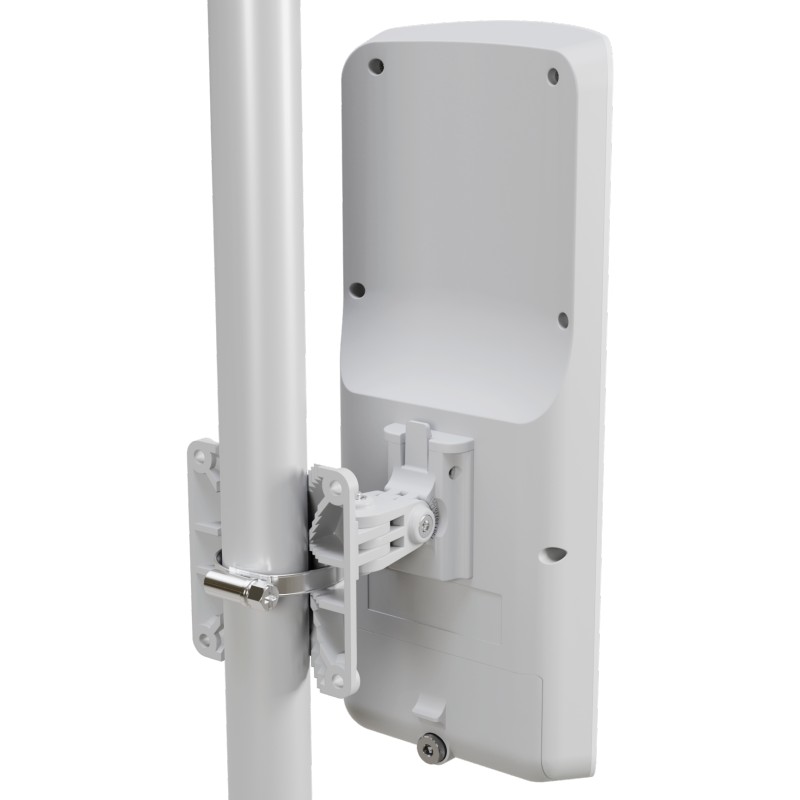

| 1 x quickMOUNT PRO
|
| 1 x Metal ring
|
| 1 x K-41 fastening set
|
| 1 x PoE injector |
|
