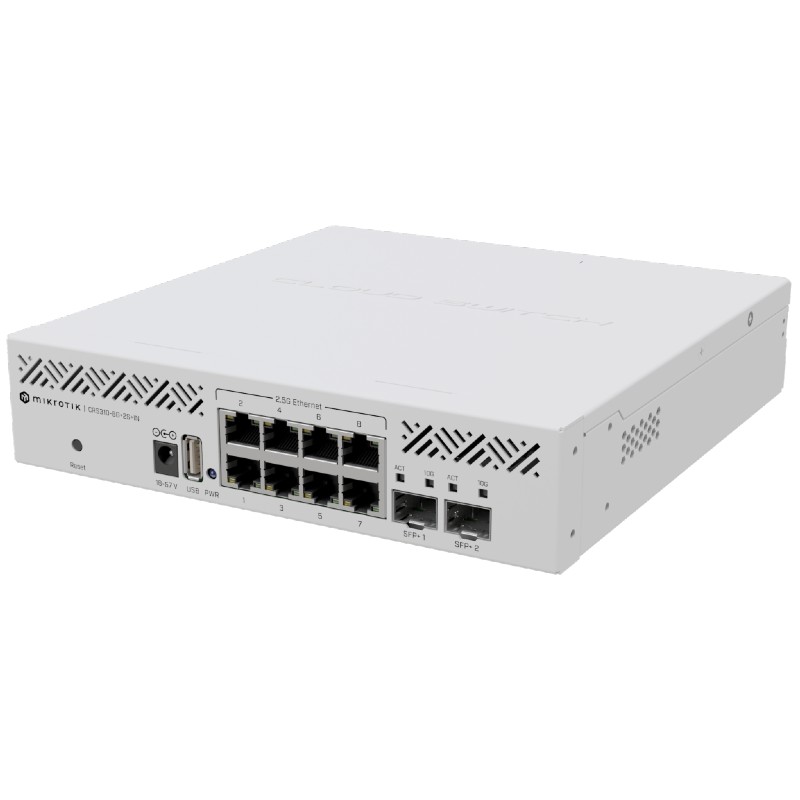

CRS310-8G+2S+IN - Βlazing fast 2.5/10 Gigabit combo can utilize the full potential of RouterOS v7
Metallic-optical Access Cloud Router Switch CRS310-8G+2S+IN is a suitable solution for a desk or a rack in small offices as a solution to upgrade from a gigabit network to 2.5 Gbps.

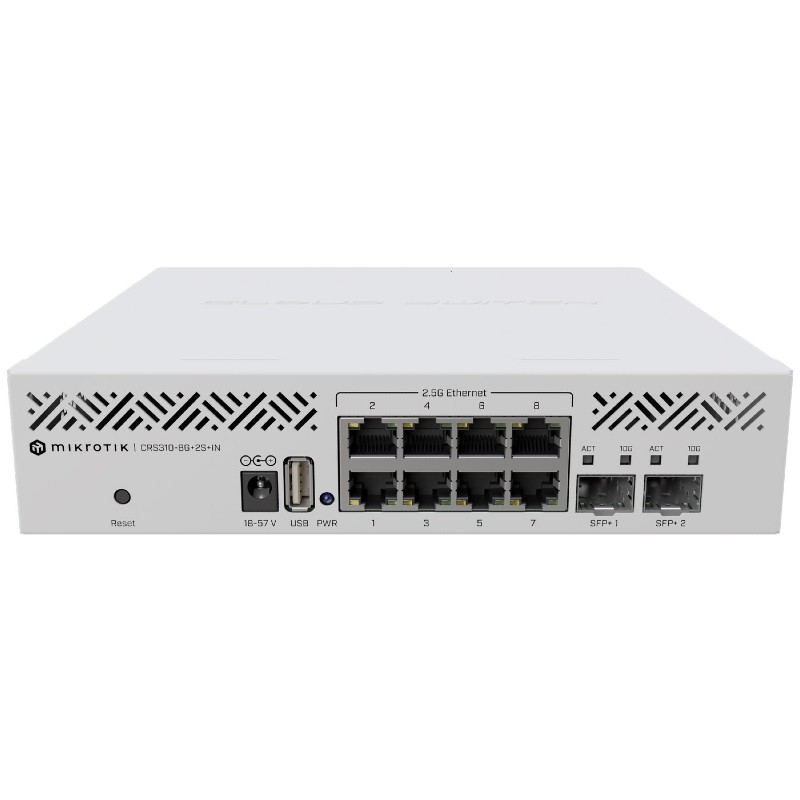

This switch offers 8x 2.5 Gbps LAN with lower speed support, 2x SFP+ slots with multi data rates 1G/2.5 G/10G, USB port and power connector with power supply options from 18 to 57V DC.

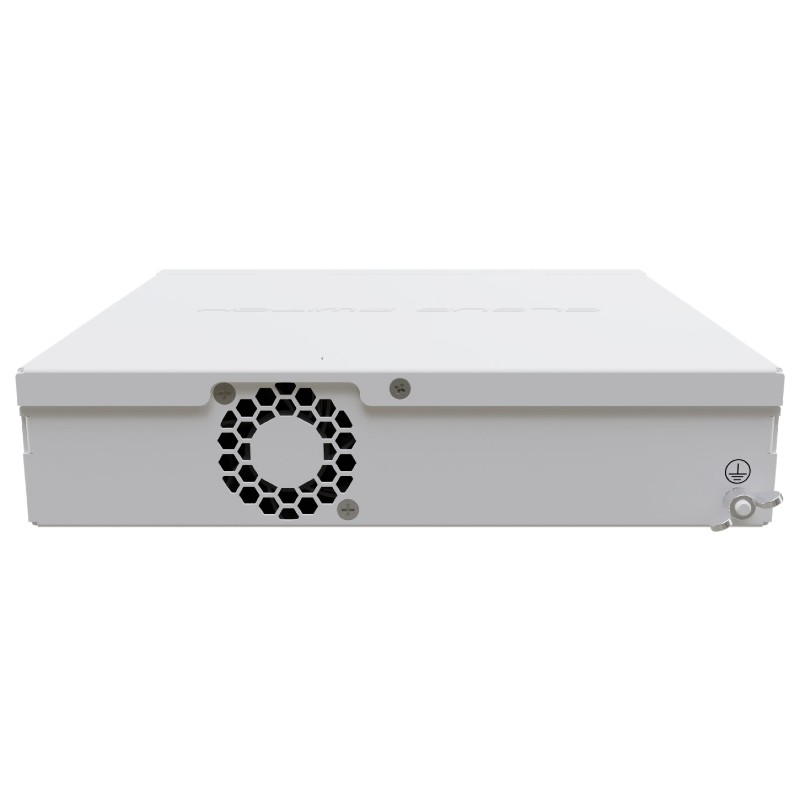

Computing power is provided by a modern 2-core ARM CPU, 256 MB of RAM, which is complemented by active cooling on the back.
Thanks to Marvell's switch chip, it can easily handle the full potential of the RouterOS v7 operating system - VLANs, Jumbo frames, ACL rules, port aggregation and much more.
Features:
-
(8) 100M/1G/2.5G ethernet
-
(2) 1G/10G (SFP+) ports
-
(1) USB port
-
Processor 98DX226S, frequency 800 MHz, ARM 32bit
-
Memory 256 MB RAM
-
Storage 16 MB
-
RouterOS v7 Level 5 operating system
|
Specifications |
|
Product code |
CRS310-8G+2S+IN |
|
Architecture |
ARM 32bit |
|
CPU |
98DX226S |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
Switch chip model |
98DX226S |
|
Dimensions |
200 x 206,1 x 44 |
|
RouterOS license |
5 |
|
Operating System |
RouterOS v7 / SwitchOS |
|
Size of RAM |
256 MB |
|
Storage size |
32 MB |
|
Storage type |
FLASH |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 60°C |
|
Powering |
|
Number of DC inputs |
1 (DC jack) |
|
DC jack input Voltage |
18-57 V |
|
Max power consumption |
34 W |
|
Max power consumption without attachments |
21 W |
|
Cooling type |
1 fan |
|
Ethernet |
|
Number of 2.5G Ethernet ports |
8 |
|
Fiber |
|
SFP+ ports |
2 |
|
Peripherals |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Other |
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
| Package Contents: |
|---|
| 1 x CRS310-8G+2S+IN
|
| 1 x 24V 1.5A power adapter
|
| 1 x K-48 screw kit
|
| 1 x Rackmount Ears |
|
