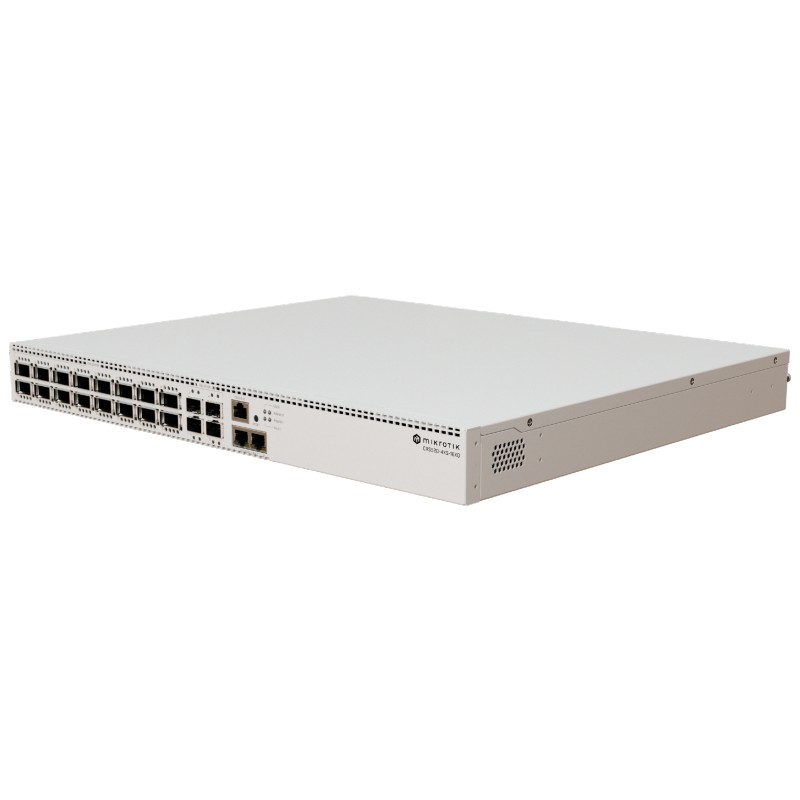

CRS520-4XS-16XQ-RM An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!
CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit
Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:
1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;
2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.
Two hot-swap power supplies and four hot-swap fans for cooling are included.
|
Specifications |
|
Product code |
CRS520-4XS-16XQ-RM |
|
Architecture |
ARM 64bit |
|
CPU |
AL52400 |
|
CPU core count |
4 |
|
CPU nominal frequency |
2 GHz |
|
Switch chip model |
98CX8410 |
|
RouterOS license |
5 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
4 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF Approximately |
200.000 hours at 25°C |
|
Tested ambient temperature |
-20°C to 50°C |
|
Powering |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Number of PSU slots |
2 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
150 W |
|
Max power consumption without attachments |
123 W |
|
Cooling type |
4 fans |
|
Ethernet |
|
Number of 1G/2.5G/5G/10G Ethernet ports |
2 |
|
Fiber |
|
Number of 25G SFP28 ports |
4 |
|
Number of 100G QSFP28 ports |
16 |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Other |
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |
| Package Contents: |
|---|
| 1 x CRS520-4XS-16XQ-RM
|
| 2 x IEC cords
|
| 2 x Rackmount Ears
|
| 2 x Rackmount rear support ears
|
| 1 x Cable management brackets
|
| 1 x K-82 fastening set |
|
