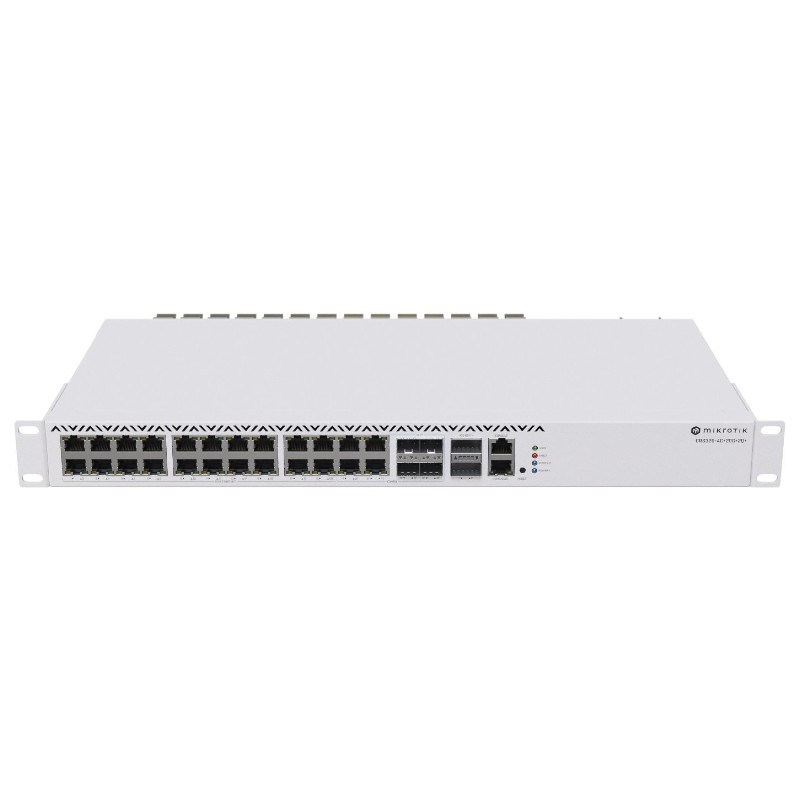

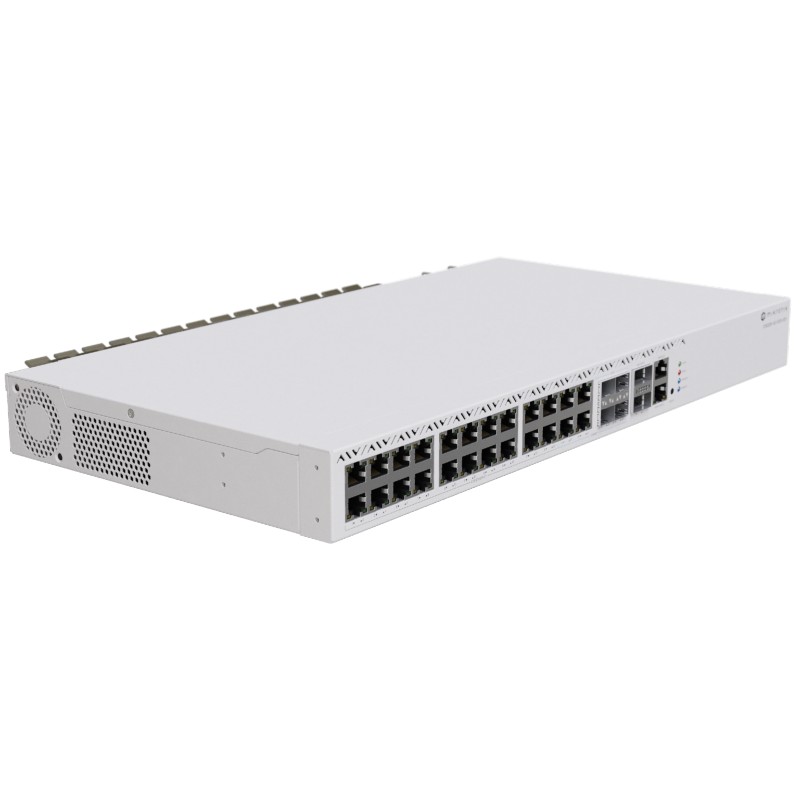

CRS326-4C+20G+2Q+RM - Top-of-the-line switch with incredible 2.5 Gigabit port density, combo ports, and even a pair of 40 Gbps QSFP+ cages.
There are 20x 2.5 Gigabit Ethernet ports, 4x COMBO ports that can either be used as 4x additional 2.5 Gigabit Ethernet ports OR as 10G SFP+ interfaces, and on top of all that – there are 2x 40 Gigabit QSFP+ cages for ultra-fast fiber connectivity.
The mighty Marvell Prestera switch-chip that comes with a dedicated CPU can handle all your daily tasks without breaking a sweat. VLAN’s, Jumbo frames, link aggregation, ACL rules… You can even do some Layer3 routing!

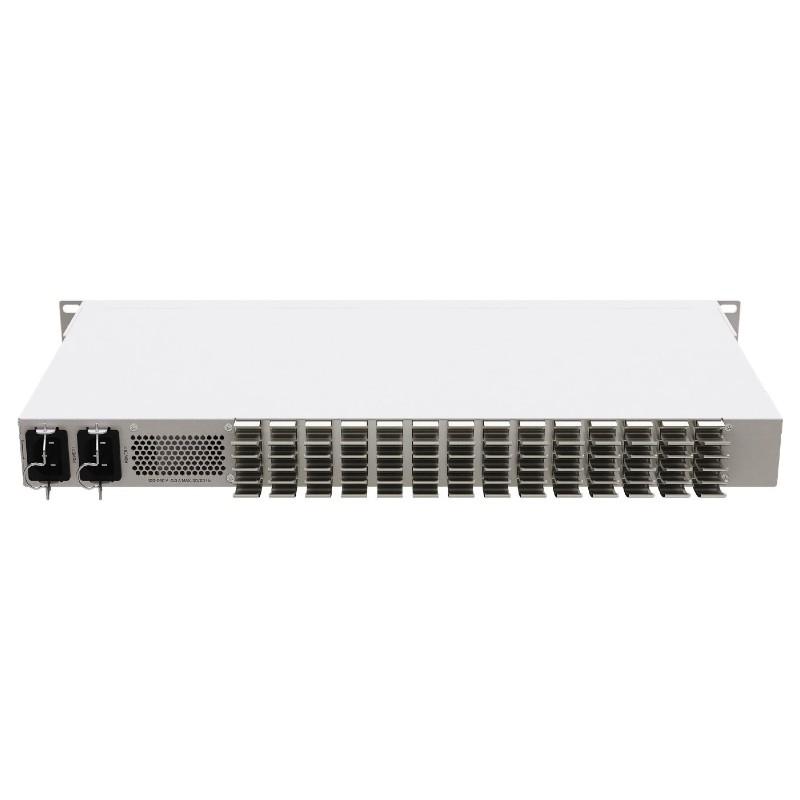

Dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes will save you a lot of troubles in the long run.
|
Specifications |
|
Product code |
CRS326-4C+20G+2Q+RM |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Switch chip model |
98DX8332 |
|
RouterOS license |
6 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
128 MB |
|
Storage size |
32 MB |
|
Storage type |
FLASH |
|
MTBF Approximately |
200.000 hours at 25°C |
|
Tested ambient temperature |
-20°C to 60°C |
|
Powering |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Max power consumption |
70 W |
|
Max power consumption without attachments |
51 W |
|
Cooling type |
2 fans |
|
Ethernet |
|
10/100 Ethernet ports |
1 |
|
Number of 2.5G Ethernet ports |
20 |
|
Number of Combo 10G Ethernet/ SFP+ ports |
4* (2.5G ETH/10G SFP+) |
|
Fiber
|
|
Number of 40G QSFP+ ports |
2 |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |

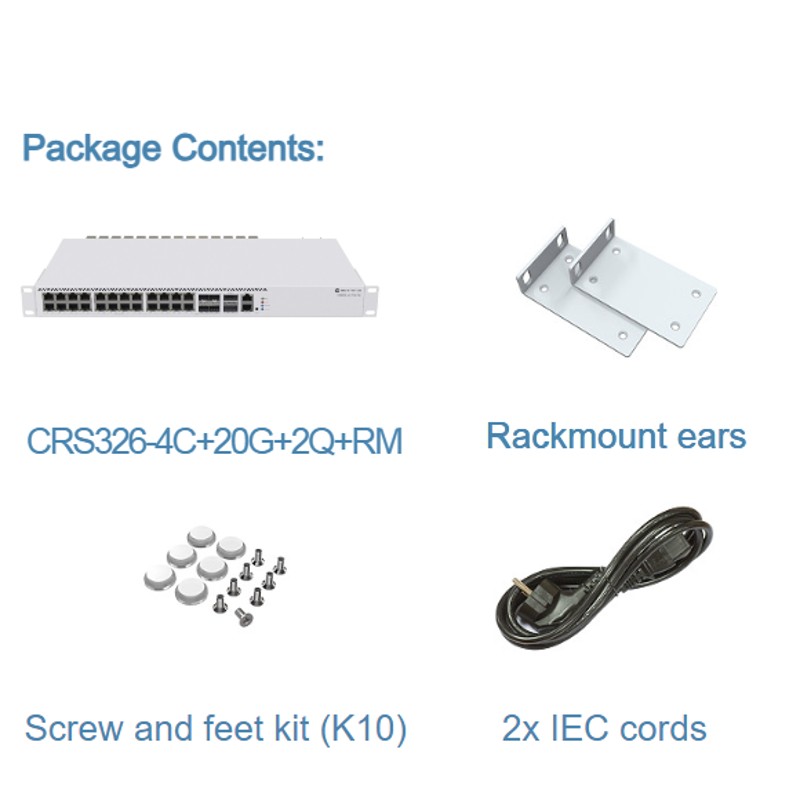

| Package Contents: |
|---|
| 1 x CRS326-4C+20G+2Q+RM
|
| 2 x AC Power cord - EU
|
| 1 x K10 screw kit
|
| 2 x Rackmount Ears |
|
