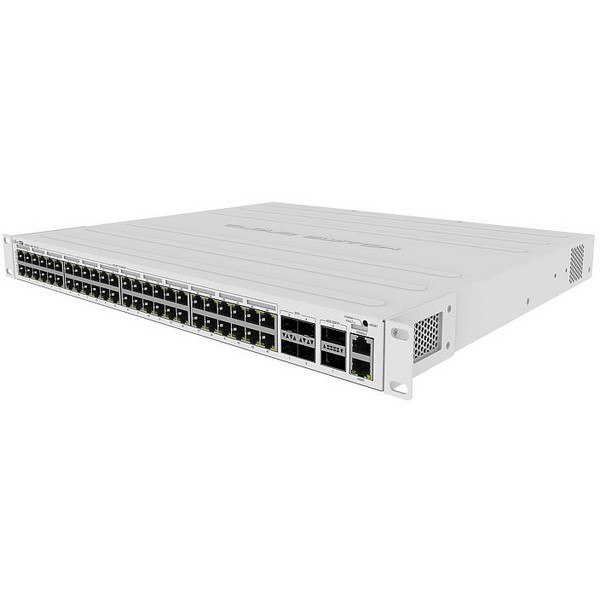

CRS354-48P-4S+2Q+RM - The 48 port champion you’ve been waiting for - now with PoE-out!
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

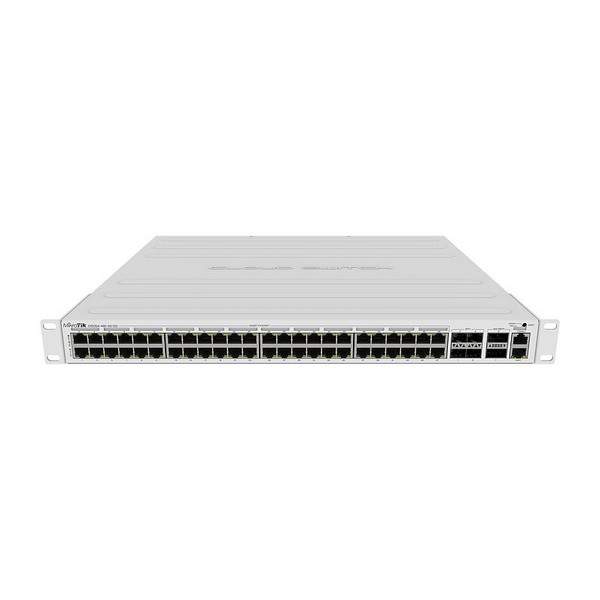

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
|
Specifications |
|
Product code |
CRS354-48P-4S+2Q+RM |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Dimensions |
443 x 382 x 44 mm |
|
License level |
5 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-20°C to 60°C |
|
Powering |
|
Number of AC inputs |
1 |
|
AC input range |
100-240 |
|
Max power consumption |
800 W |
|
Max power consumption without attachments |
85 W |
|
PoE-out |
|
PoE-out ports |
48 ports with 802.3af/at and passive modes |
|
PoE out |
802.3af/at |
|
Max out per port output (input < 30 V) |
1000 mA |
|
Max out per port output (input > 30 V) |
570 mA |
|
Total output current |
27A at 26V OR 13.2A at 53V |
|
Total output power |
700W |
|
Ethernet |
|
10/100 Ethernet ports |
1 |
|
10/100/1000 Ethernet ports |
48 |
|
Fiber |
|
SFP+ ports |
4 |
|
Number of 40G QSFP+ ports |
2 |
|
Peripherals |
|
Serial port |
RJ45 |
|
Other |
|
CPU temperature monitor |
Yes |
|
Current Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals |
|
Certification |
CE/RED, EAC, ROHS |

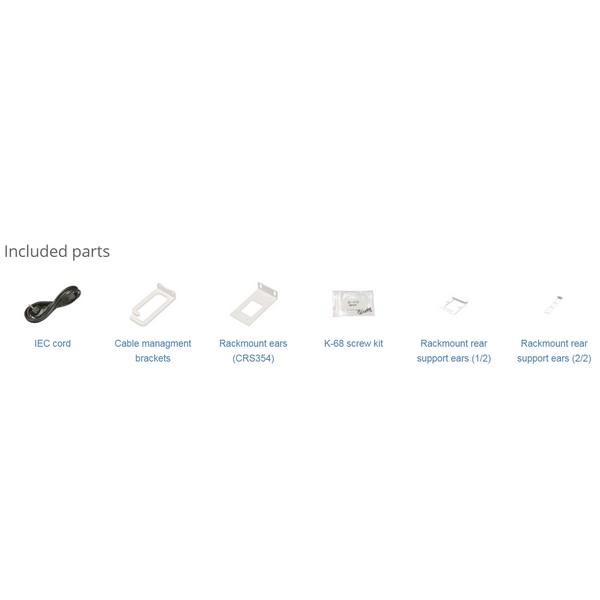

| Package Contents: |
|---|
| 1 x CRS354-48P-4S+2Q+RM
|
| 1 x IEC cord
|
| 1 x Cable managment brackets
|
| 1 x Rackmount ears (CRS354)
|
| 1 x K-68 screw kit
|
| 1 x Rackmount rear support ears (1/2)
|
| 1 x Rackmount rear support ears (2/2) |
|
