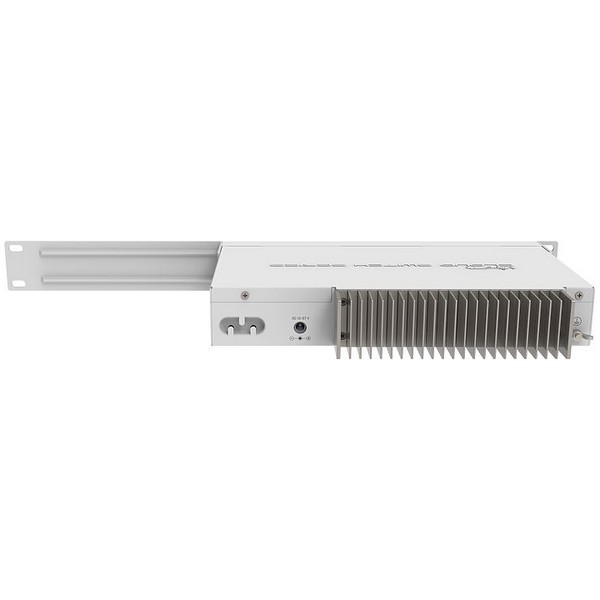

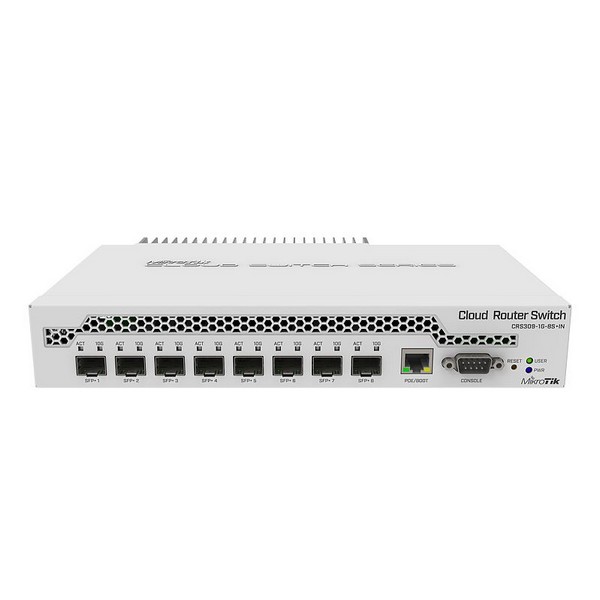

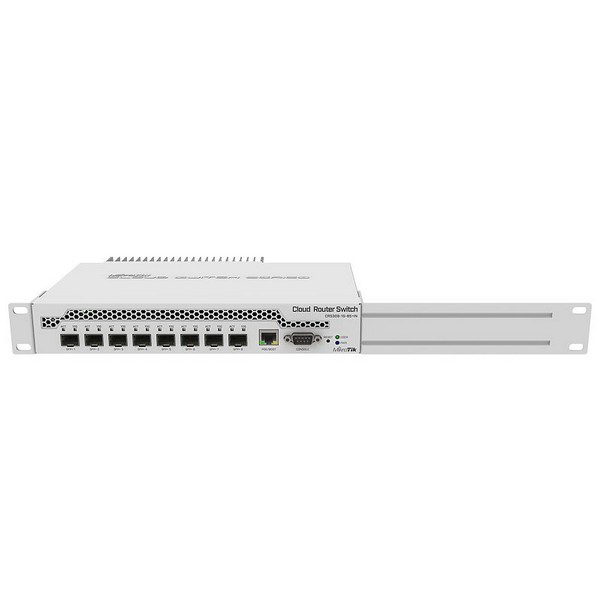

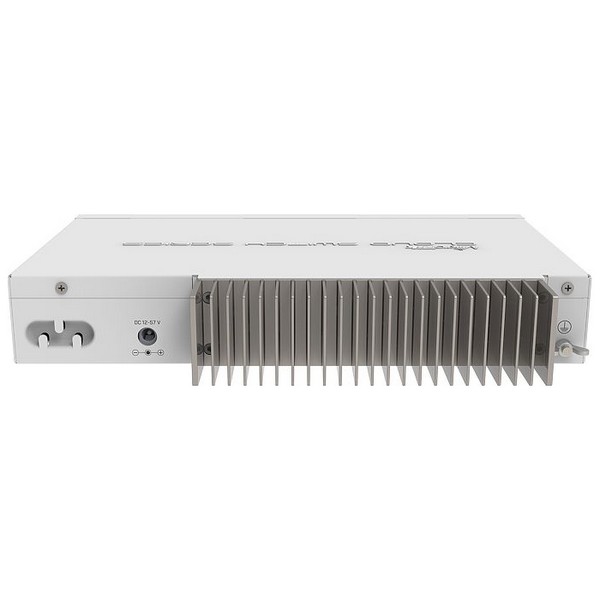

CRS309-1G-8S+IN is a very compact, yet powerful networking switch.
It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.
The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS
|
Specifications |
|
Product code |
CRS309-1G-8S+IN |
|
Architecture |
ARM 32bit |
|
CPU |
98DX8208 |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
Dimensions |
272 x 191 x 44 mm |
|
License level |
5 |
|
Operating System |
RouterOS / SwitchOS |
|
Size of RAM |
512 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
18-57 V |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-57 V |
|
Max power consumption |
23 W |
|
Max power consumption without attachments |
17 W |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
SFP+ ports |
8 |
|
Peripherals |
|
Serial port |
RS232 |

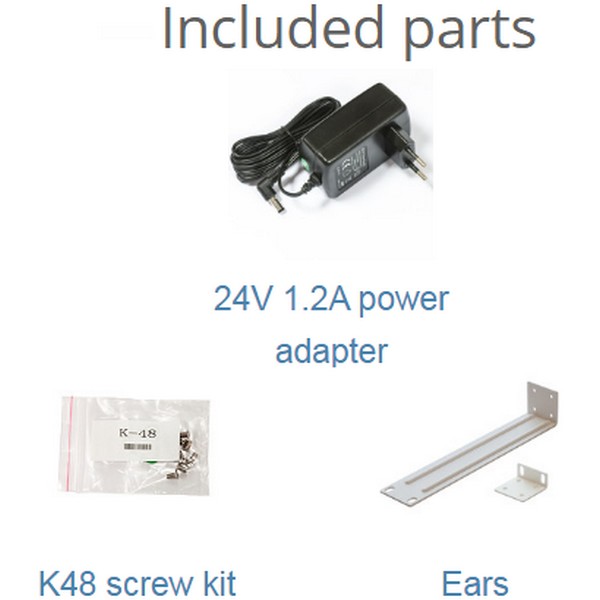

| Package Contents: |
|---|
| 1 x CRS309-1G-8S+
|
| 1 x 24V 1.2A power adapter
|
| 1 x K48 screw kit
|
| 1 x Rackmount Ears |
|
