RDS2216 - RDS2216-2XG-4S+4XS-2XQ ROSE Data server (RDS)
RDS is a high-performance, all-in-one storage, 100G networking, and container platform designed for enterprise environments.
Featuring 20 U.2 NVMe storage slots and a special RouterOS Edition for Storage & Compute (ROSE).

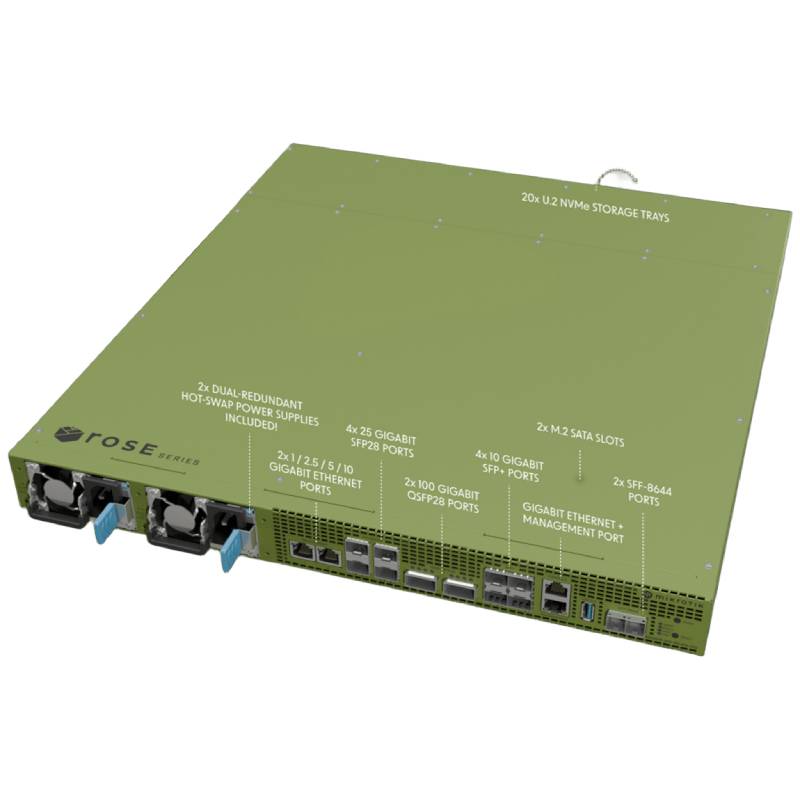

Features:
-
20 × U.2 NVMe SSD slots + M.2 SATA slot
-
2 × 100G QSFP28, 4× 25G SFP28, 4× 10G SFP+, 2× 10G Ethernet
-
2 × SFF-8644 expansion SAS interface
-
Powerful 16-core ARM AL73400 (2 GHz), 32GB DDR4 RAM
-
Redundant hot-swap power supplies for maximum uptime
-
Full containerization support (MinIO, Nextcloud, Shinobi, Frigate)
-
Advanced networking and storage features with RouterOS, free of hidden fees
-
Low power consumption and optimized cooling
|
Specifications |
|
Product code |
RDS2216-2XG-4S+4XS-2XQ |
|
Architecture |
ARM 64bit |
|
CPU |
AL73400 |
|
CPU core count |
16 |
|
CPU nominal frequency |
2000 MHz |
|
Switch chip model |
98DX4310 |
|
RouterOS license |
6 |
|
Operating System |
RouterOS v7 (Special ROSE edition) |
|
Size of RAM |
32 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF Approximately |
200.000 hours at 25°C |
|
Tested ambient temperature |
-20°C to 50°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
286 W |
|
Max power consumption without attachments |
105 W |
|
Cooling type |
10 fans |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Number of 1G/2.5G/5G/10G Ethernet ports |
2 |
|
Fiber |
|
SFP+ ports |
4 |
|
Number of 25G SFP28 ports |
4 |
|
Number of 100G QSFP28 ports |
2 |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Number of USB ports |
2 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB 3.0 type A |
|
Max USB current (A) |
1 |
|
Number of M.2 slots |
2 |

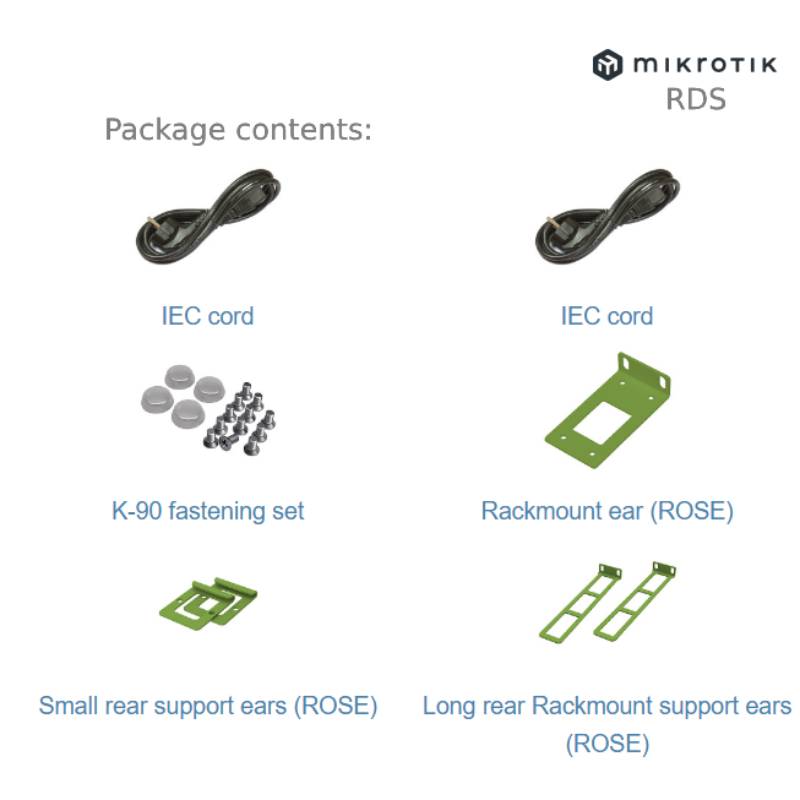

| Package Contents: |
|---|
| 1 x RDS2216-2XG-4S+4XS-2XQ
|
| 2 x IEC cord
|
| 1 x K-90 fastening set
|
| 2 x Rackmount ear (ROSE)
|
| 2 x Small rear support ears (ROSE)
|
| 2 x Long rear Rackmount support ears (ROSE) |
|
