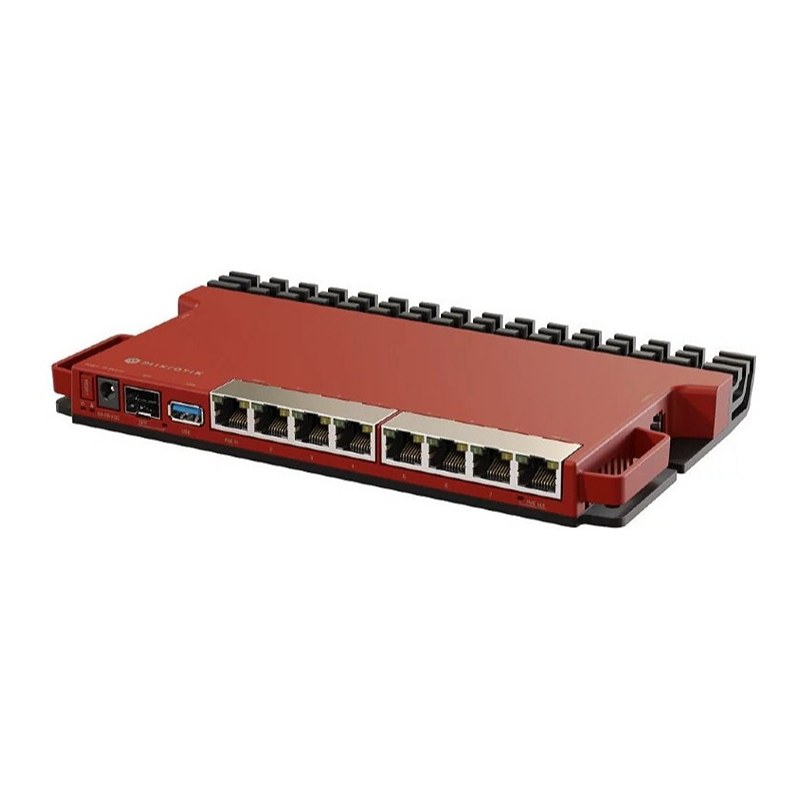

L009UiGS-RM - L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.
L009 is an upgraded version of the famous RB2011 router. The L009 model is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.
Router L009UiGS-RM has better performance, more features, and some interesting quality-of-life improvements. A powerful dual-core ARM CPU offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features.

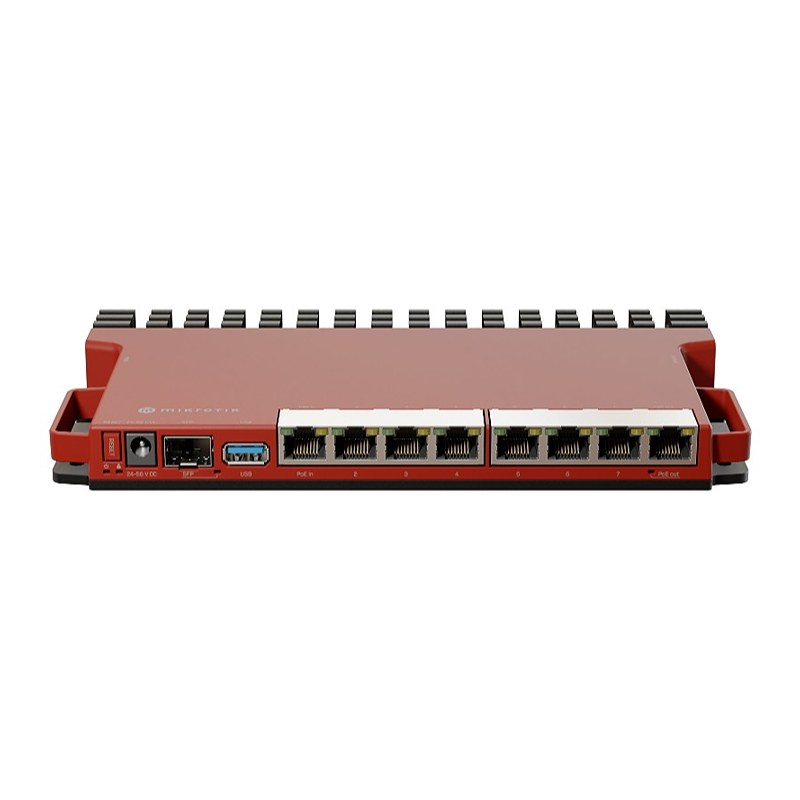

The router is equipped with 8 Gigabit Ethernet ports with PoE-in on the first port (it can be used to power the unit instead of the DC jack) and the PoE-out on the last port (works only if the router is powered by DC jack).
An SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. There is also a console port for quick direct-access configuration. A speedy Marvell Peridot Switch chip offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU.

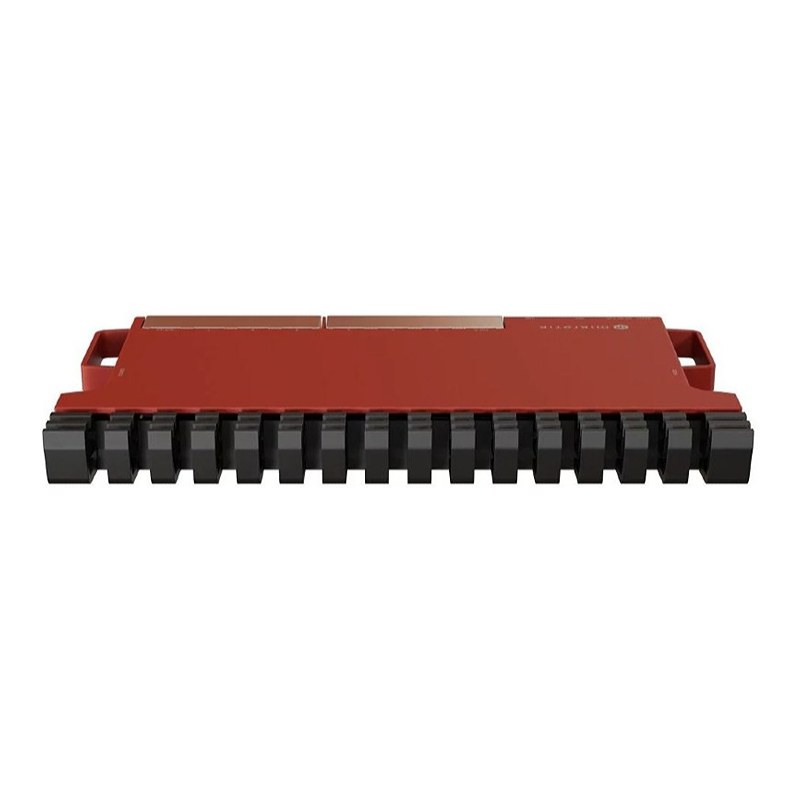

The enclosure of the router acts as a massive heat-sink, protecting your setups from overheating. Up to four of these routers can be installed in a single 1U rackmount space.
|
Specifications : |
|
Product code |
L009UiGS-RM |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-5018 |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
Switch chip model |
88E6190 |
|
RouterOS license |
5 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
512 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
24-56 V |
|
Max power consumption |
37 W |
|
Max power consumption without attachments |
8 W |
|
Cooling type |
Passive |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
24-56 V |
|
PoE-out |
|
PoE-out ports |
Ether8 |
|
PoE out |
Passive PoE |
|
Max out per port output (input 18-30 V) |
1 A |
|
Max out per port output (input 30-57 V) |
450 mA |
|
Max total out (A) |
1 A |
|
Ethernet |
|
10/100/1000 Ethernet ports |
8 |
|
Number of 1G Ethernet ports with PoE-out |
1 |
|
Fiber |
|
SFP ports |
1 (2.5G supported) |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB 3.0 type A |
|
Max USB current (A) |
1 |
| Package Contents: |
|---|
| 1 x CCR1016-12S-1S+
|
| 1 x 24V 1.5A power adapter
|
| 1 x K-52 fastening set
|
| 1 x Rackmount kit K-79 |
|
