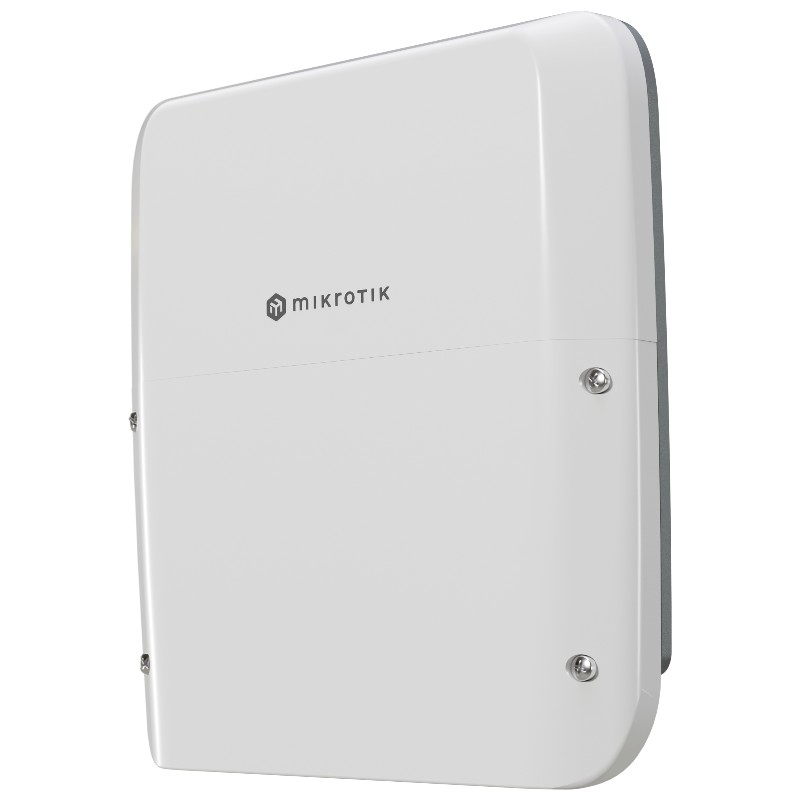

RB5009UPr+S+OUT - Outdoor Router, 7x GbE Ports, 1x 2.5GbE Port, 10G SFP+, Quad-Core CPU, 1GB DDR4 RAM, 1GB NAND, IP67
The RB5009 outdoor version is equipped with 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet port and a 10 Gigabit SFP+ cage for fiber connectivity.
It has the speed, the power, and the durability. Adding an IP67-rated waterproof enclosure to the RB5009 series allows meeting all the requirements.
The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups.
|
Specifications |
|
Product code |
RB5009UPr+S+OUT |
|
Architecture |
ARM 64bit |
|
CPU |
88F7040 |
|
CPU core count |
4 |
|
CPU nominal frequency |
350-1400 (auto) MHz |
|
Switch chip model |
88E6393 |
|
RouterOS license |
5 |
|
Operating System |
RouterOS (v7 only) |
|
Size of RAM |
1 GB |
|
Storage size |
1 GB |
|
Storage type |
NAND |
|
MTBF Approximately |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 70°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
Number of DC inputs |
2 (PoE-IN, 2-pin terminal) |
|
2-pin terminal input Voltage |
24-57 V |
|
Max power consumption |
150 W |
|
Max power consumption without attachments |
15 W |
|
Cooling type |
Passive |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
24-57 V |
|
PoE-out |
|
PoE-out ports |
Ether1-Ether8 |
|
PoE out |
802.3af/at |
|
Max out per port output (input 18-30 V) |
620 mA |
|
Max out per port output (input 30-57 V) |
420 mA |
|
Max total out (A) |
2.59 A |
|
Total output current |
2.28 |
|
Total output power |
120 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
7 |
|
Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
|
Number of 2.5G Ethernet ports |
1 |
|
Number of 2.5G Ethernet ports with PoE-out |
1 |
|
Fiber |
|
SFP+ ports |
1 |
|
Peripherals |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB 3.0 type A |
|
Max USB current (A) |
1 |
|
Other |
|
CPU temperature monitor |
Yes |
|
Current Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals |
|
Certification |
CE, EAC, ROHS |
| Package Contents: |
|---|
| 1 x RB5009UG+S+IN
|
| 1 x 24V 1.5A power adapter
|
| 1 x K-55 screw kit |
|
