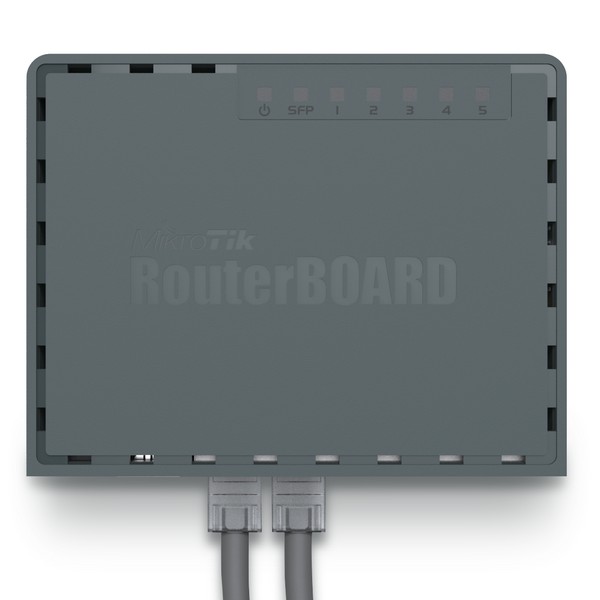

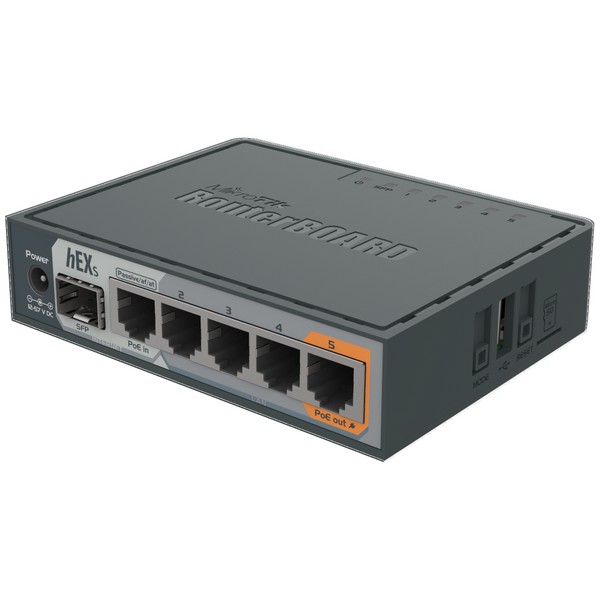

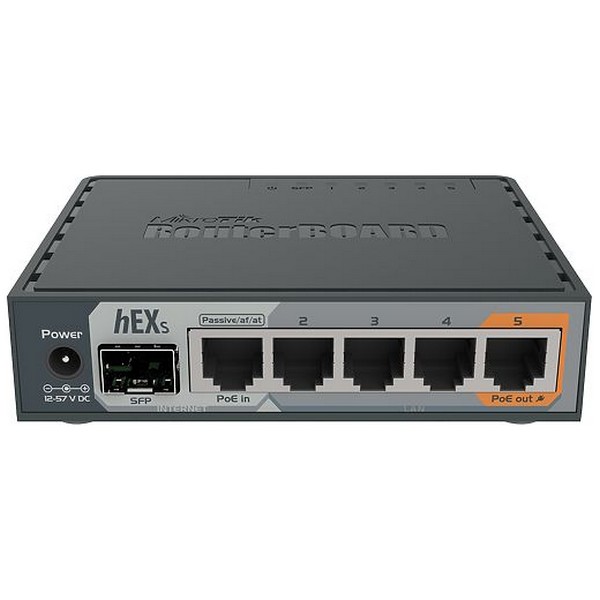

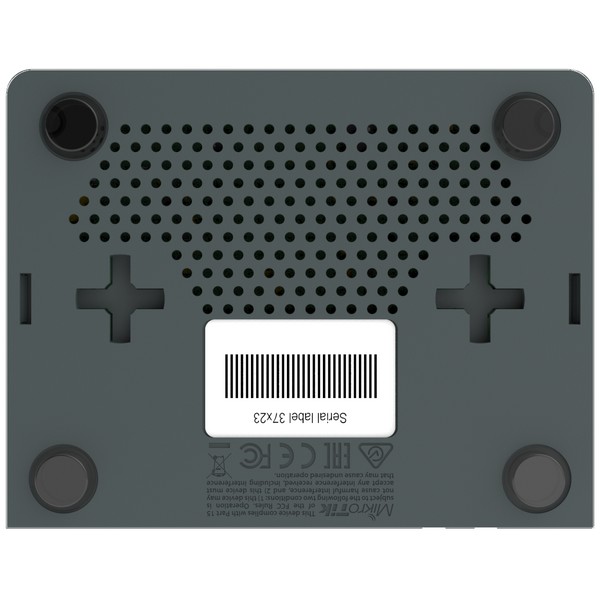

hEX S
Is a five port Gigabit Ethernet router for locations where wireless connectivity is not required.
Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports.
The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
|
Details: |
|
Product code: |
RB760iGS |
|
Architecture: |
MMIPS |
|
CPU: |
MT7621A |
|
CPU core count: |
2 |
|
CPU nominal frequency: |
880 MHz |
|
CPU Threads count: |
4 |
|
Dimensions: |
113 x 89 x 28 mm |
|
License level: |
4 |
|
Operating System: |
RouterOS |
|
Size of RAM: |
256 MB |
|
Storage size: |
16 MB |
|
Storage type: |
FLASH |
|
Tested ambient temperature: |
-40°C .. +70°C |
|
Powering: |
|
Max Power consumption: |
11W |
|
PoE in: |
802.3af/at |
|
PoE out: |
Passive PoE up to 57V |
|
PoE in input Voltage: |
12-57 V |
|
Number of DC inputs: |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage: |
12-57 V |
|
Ethernet: |
|
10/100/1000 Ethernet ports: |
5 |
|
Fiber: |
|
SFP ports: |
1 |
|
Peripherals: |
|
Number of USB ports: |
1 |
|
USB Power Reset: |
Yes |
|
USB slot type: |
USB type A |
|
Max USB current (A): |
1 |
| Package Contents: |
|---|
| 1 x hEX S - RB760iGS
|
| 1 x Power adapter 24V 1.2A |
|
