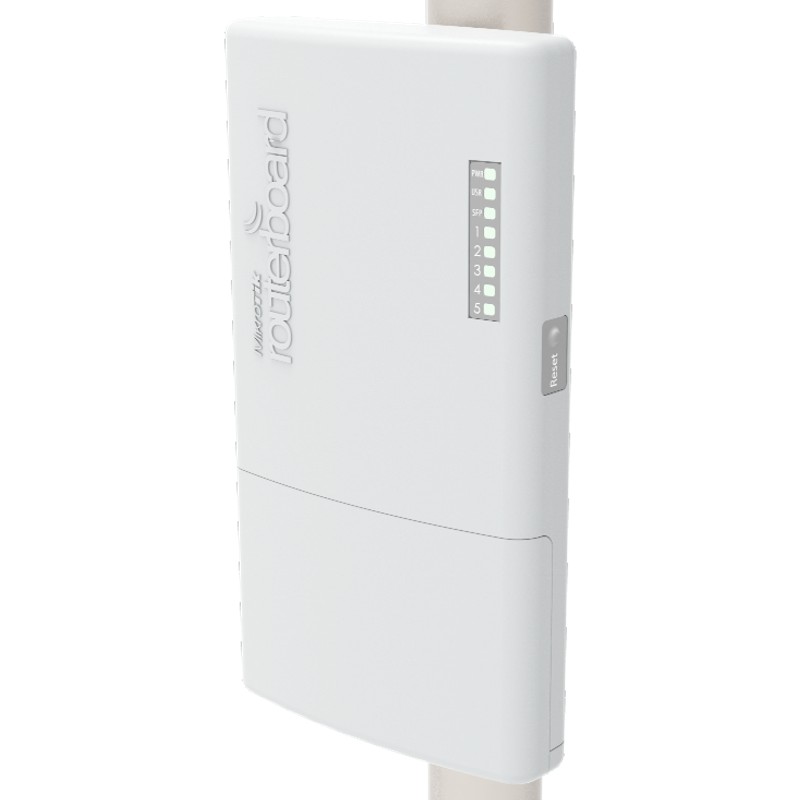

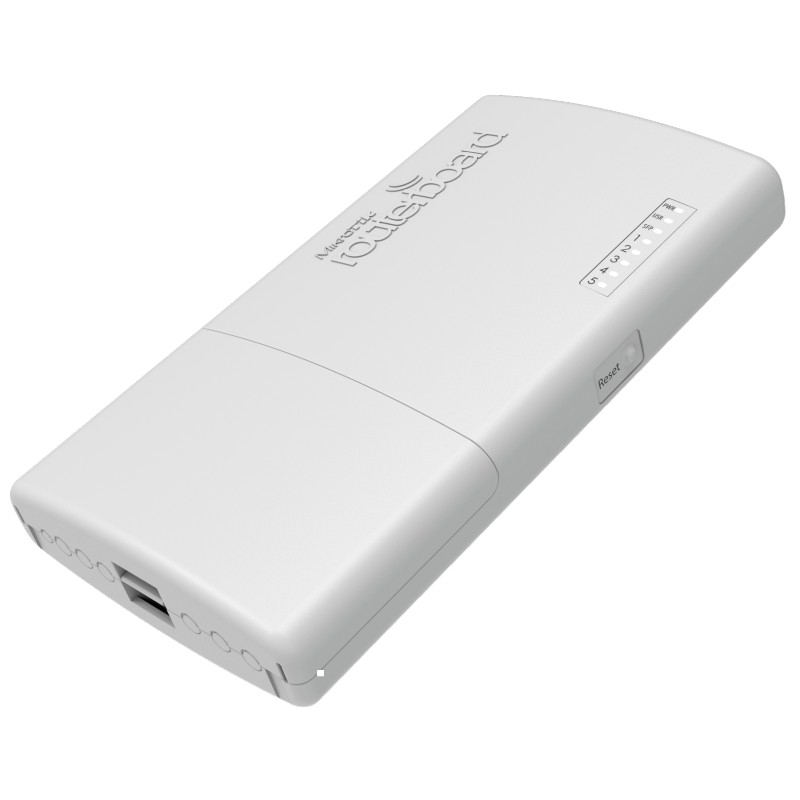

PowerB​ox Pro
The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports.
Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
|
Specifications |
|
Product code |
RB960PGS-PB |
|
Architecture |
MIPSBE |
|
CPU |
QCA9557 |
|
CPU core count |
1 |
|
CPU nominal frequency |
800 MHz |
|
Switch chip model |
QCA8337 |
|
Dimensions |
125 x 52 x 225 mm |
|
RouterOS license |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-57 V |
|
Max power consumption |
54 W |
|
Max power consumption without attachments |
6 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
12-57 V |
|
PoE-out |
|
PoE-out ports |
Ether2-Ether5 |
|
PoE out |
802.3af/at |
|
Max out per port output (input 18-30 V) |
1 A |
|
Max out per port output (input 30-57 V) |
450 mA |
|
Max total out (A) |
2 A |
|
Ethernet |
|
10/100/1000 Ethernet ports |
5 |
|
Fiber |
|
SFP ports |
1 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals |
|
Certification |
CE, EAC, ROHS |

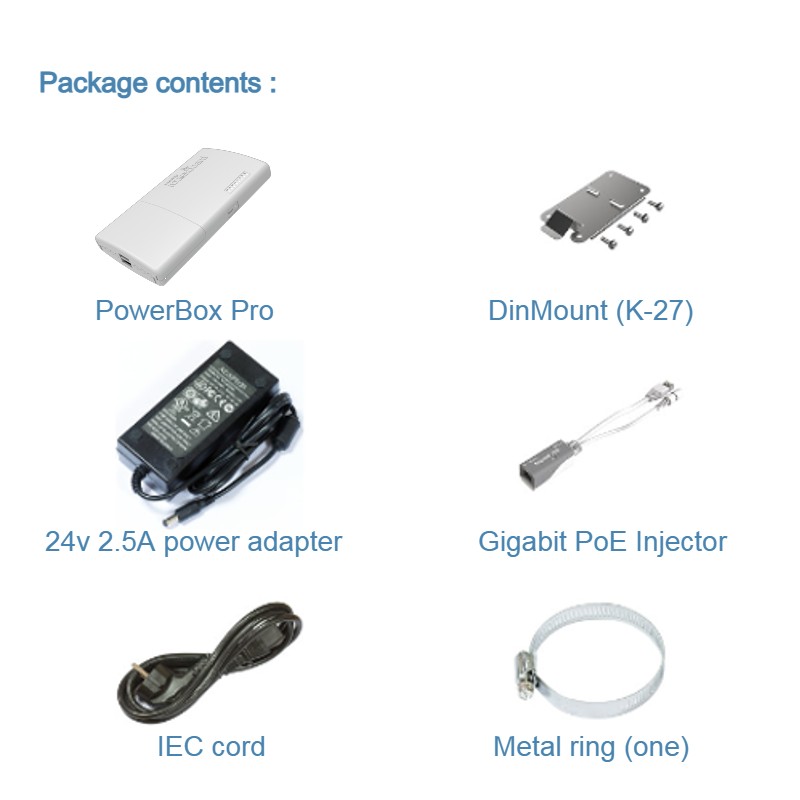

| Package Contents: |
|---|
| 1 x PowerBox Pro
|
| 1 x Pole Mounting Kit
|
| 1 x 24V 2.5A Desktop Power Adapter
|
| 1 x EU Type AC Cable |
|
