Ubiquiti ETH-SP-G2, Ethernet Surge Protector - G2
[2098][ETH-SP-G2]

Price: 11,00€

Order or Qty		Price
> 500€	5+	10,89€
> 1000€	10+	10,78€
> 2000€	20+	10,67€
> 5000€	40+	10,56€
> 10000€	100+	10,45€

Prices exclude VAT

In Stock: 23

Available quantity within
3-5 working days: 623

Order Qty:

UPC:	817882023900

ETH-SP-G2

The ETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps.

Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.

All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH‑SP adds another layer of protection to your outdoor, high-speed network.

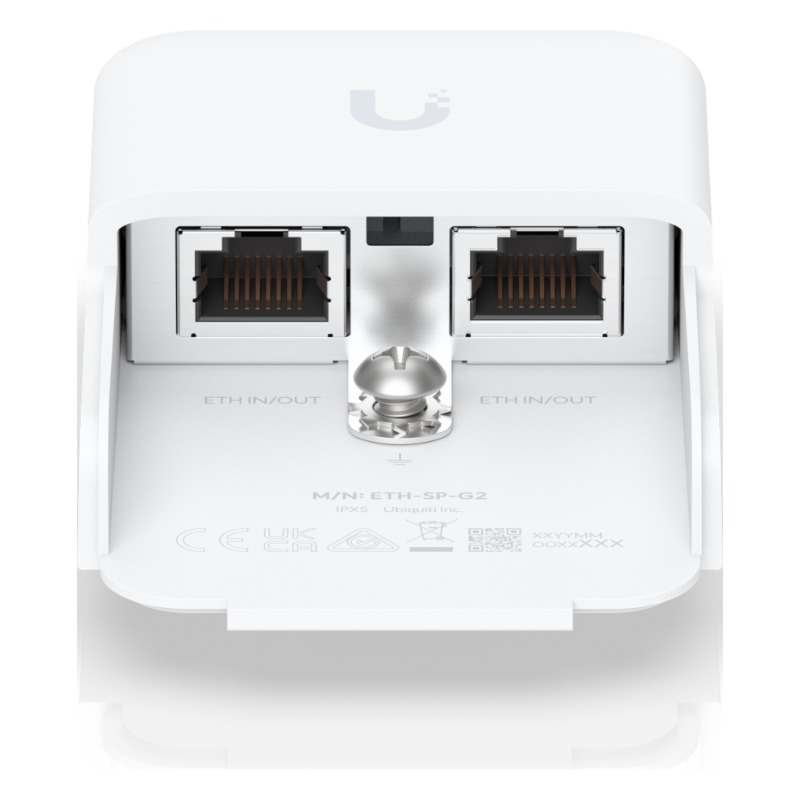

Connect the ground and Ethernet cables in between your network devices.

Product Links:
Datasheet	Quick Start Guide

Specifications:
Dimensions:	91 x 61 x 32.5 mm
Weight:	80 g
Interface Connections:	RJ45 Female Connectors
ESD/EMP Protection:	Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/us
DC Spark-Over Voltage:	90V @ 100V/s
Maximum Impulse Spark-over Voltage:	700V @ 1kV/us
Discharge Current:	5kA (Maximum) 0.5kA (Normal)
Maximum Insulation Resistance:	1G ohm @ 50V
Maximum Capacitance:	1.0 pF @ 1 MHz
Data Line Protection:	RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support:	Yes
Shock and Vibration Certification:	ETSI300-019-1.4 Standard
Operating Temperature:	-30°C to 65°C
Operating Humidity:	10 to 90% Noncondensing

Package Contents:
1 x ETH-SP-G2

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
