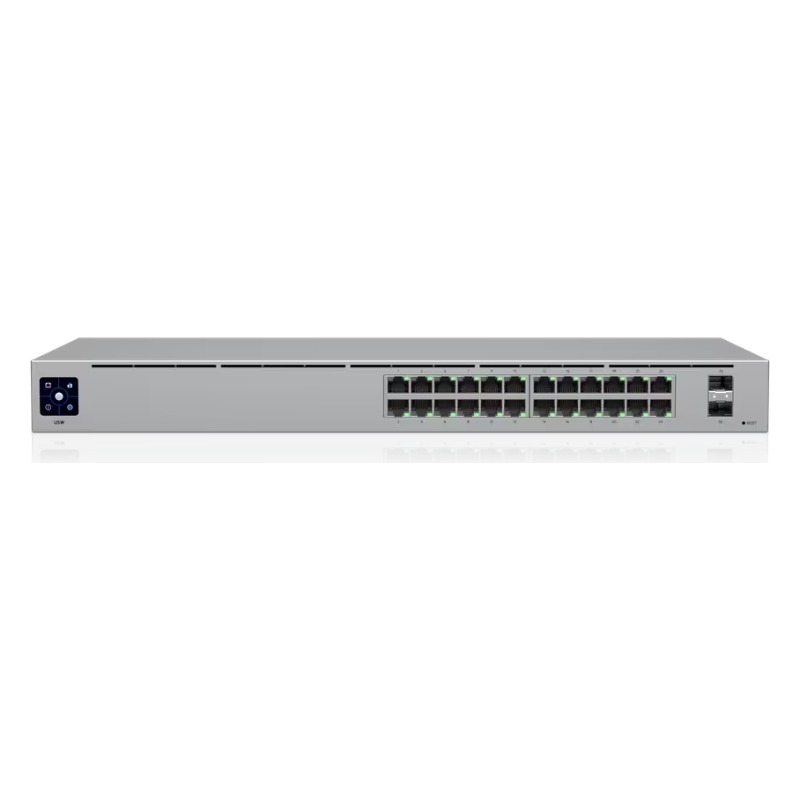

Ubiquiti UniFi Switch USW-24
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

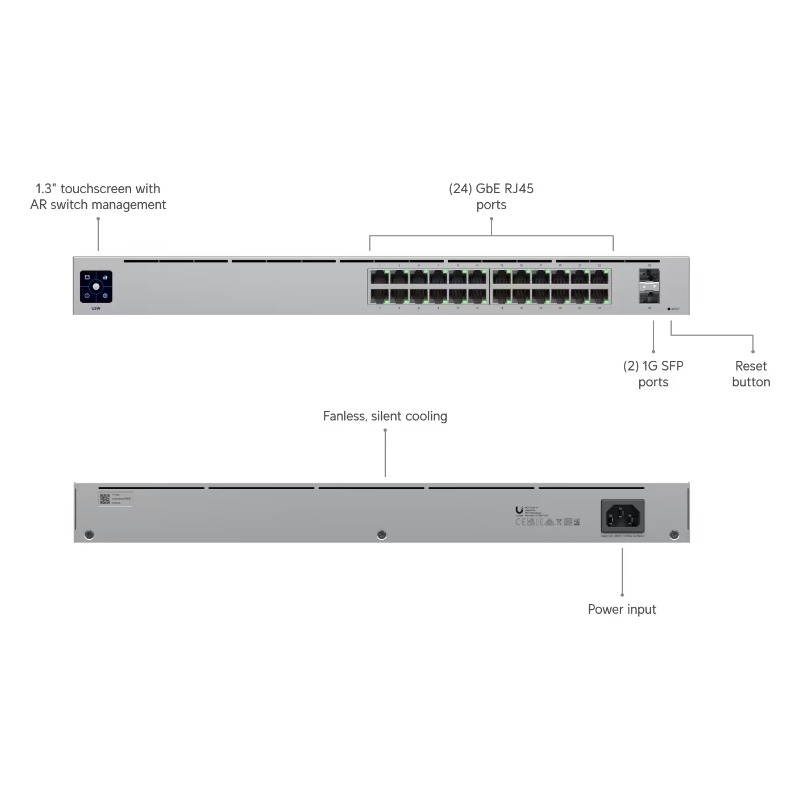

Features:
-
(24) Gigabit Ethernet Ports
-
(2) Gigabit SFP Ports
-
1.3" color touchscreen for status information
-
Managed by UniFi Network Controller
-
1U rackmountable (kit included)
|
Specifications |
|

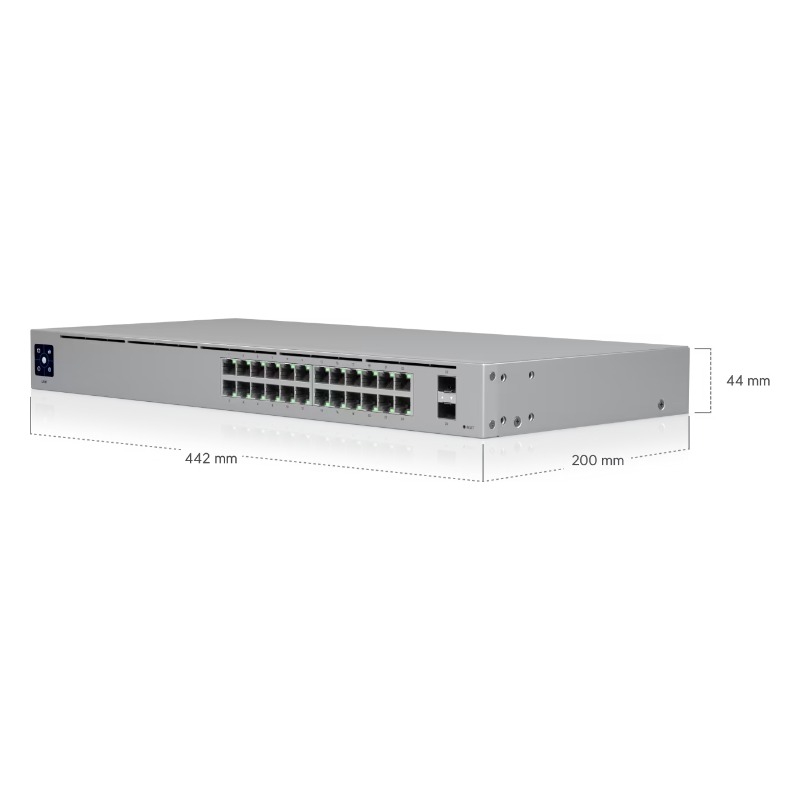

Dimensions |
442.4 x 200 x 43.7 mm |
Weight
With Rackmount Brackets |
2.70 kg
2.79 kg |
Interfaces
Networking
Management |
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Ethernet In-Band |
|
Power Method |
100-240VAC, 50/60 Hz, Universal Input |
|
Power Supply |
AC/DC, Internal, 36W |
|
Supported Voltage Range |
100 to 240VAC |
|
Max. Power Consumption |
25W |
LEDs
RJ45 Data Ports
SFP Data Ports |
Speed/Link/Activity
Link/Activity |
|
ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
Operating Temperature |
-5 to 45°C |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |

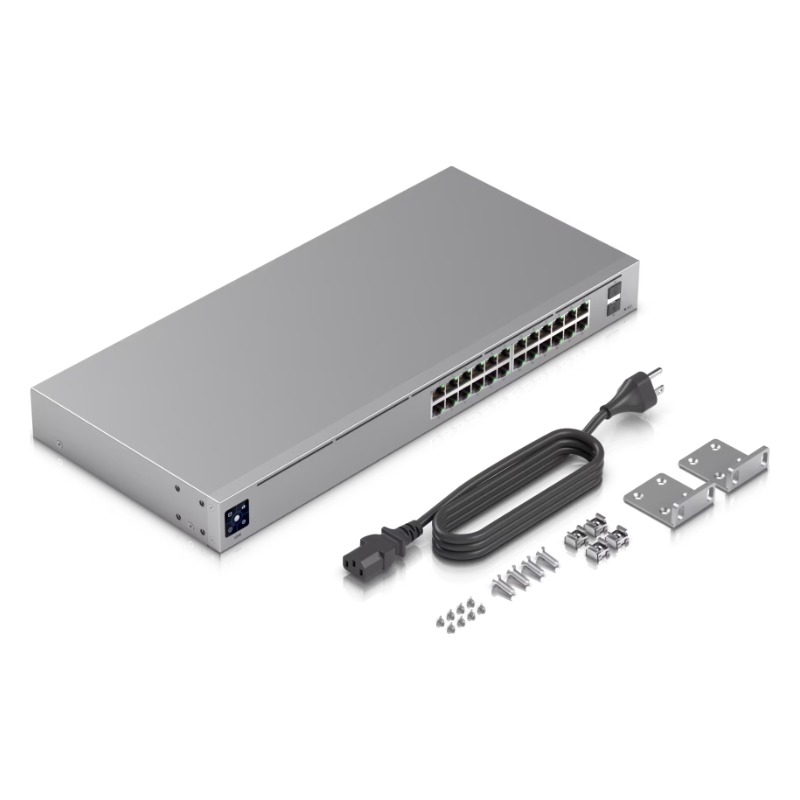

| Package Contents: |
|---|
| 1 x UniFi Switch USW-24
|
| 2 x Rack-Mount Brackets
|
| 8 x Bracket Screws
|
| 4 x Mounting Screws
|
| 4 x Cage Nuts
|
| 1 x Power Cord |
|
