Ubiquiti US-48, Unifi Switch, 48-port with SFP, no PoE
[2072][US-48]

The product is
no longer available

Prices exclude VAT

UPC:	810354024788

Unifi Switch US-48

It is a managable switch with 48 gigabit ethernet + 2 SFP and 2 SFP+ ports with a total 70 Gbps throughput.

A big advantage is silent operation without fans and redundant or direct DC power supply.

Switch can be powered with 230V AC input and 2.5mm DC connector with variable power from 16 to 25V with maximum power consumption 56W.

The main difference between UniFi switches and Edge Switches is web management - Edge Switche's WebGUI management is substituted by UniFi Controller in UniFi Switches.

Product Links:
Datasheet	Quick Start Guide	UniFi Controller

Specifications:
Dimensions:	443 × 43 × 286 mm
Weight:	3.65 kg
Total Non-Blocking Throughput:	70Gbps
Switching Capacity:	140 Gbps
Forwarding Rate:	104.16 Mpps
Max. Power Consumption:	56W
Power Method:	100-240VAC/50-60Hz, Universal Input
Power Supply:	AC/DC, Internal, 56W DC
LEDs Per Port:	Speed/Link/Activity
Networking Interfaces:	48x 10/100/1000Mbps RJ45 Ethernet Ports 2x 1Gbps SFP+ Ethernet Ports 2x 1Gbps SFP Ethernet Ports
Management Interface:	Ethernet In/Out of Band
Certifications:	CE, FCC, IC
Rackmount:	yes, 1U
ESD/EMP Protection:	Air: ±24kV, Contact: ±24kV
Operating Temperature:	-5°C to 40°C
Operating Humidity:	5 to 95% Noncondensing
Shock and Vibration:	ETSI300-019-1.4 Standard

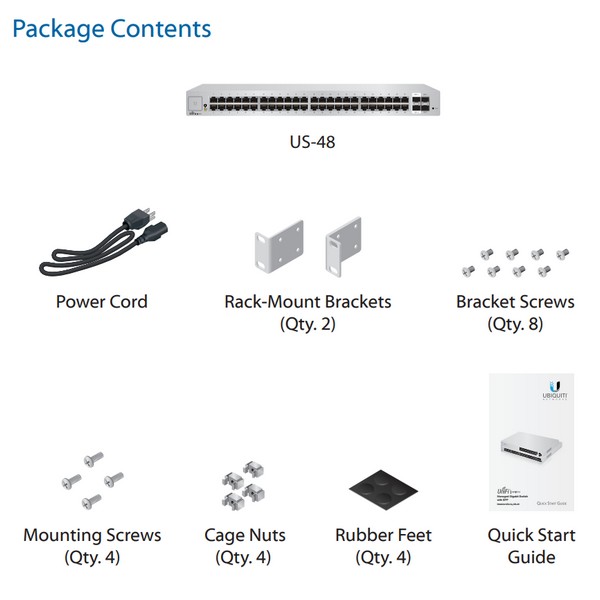

Package Contents:
1 x US-48
1 x Wall and Rack Mounting Kit
1 x Power Cord
4 x Rubber Feet

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
