UVC-AI-360 - UniFi Video Camera AI 360
High-resolution pan-tilt-zoom camera with a 360° fisheye lens and built-in IR LEDs for panoramic, around-the-clock surveillance.
The Camera AI 360 (AI 360) is a PTZ camera that provides panoramic surveillance of heavily populated indoor and outdoor areas.
The AI 360 streams sharp 1920x1920 video at a smooth 30 frames per second (FPS), and its built-in IR LEDs ensure that every frame is crystal clear—day or night.
Equipped with a 5 MP CMOS sensor and an ultra-wide, 360° fisheye lens, the AI 360 can quickly detect finite details within its expansive coverage area and capture them with pristine clarity.
|
Mechanical |
|
Dimensions |

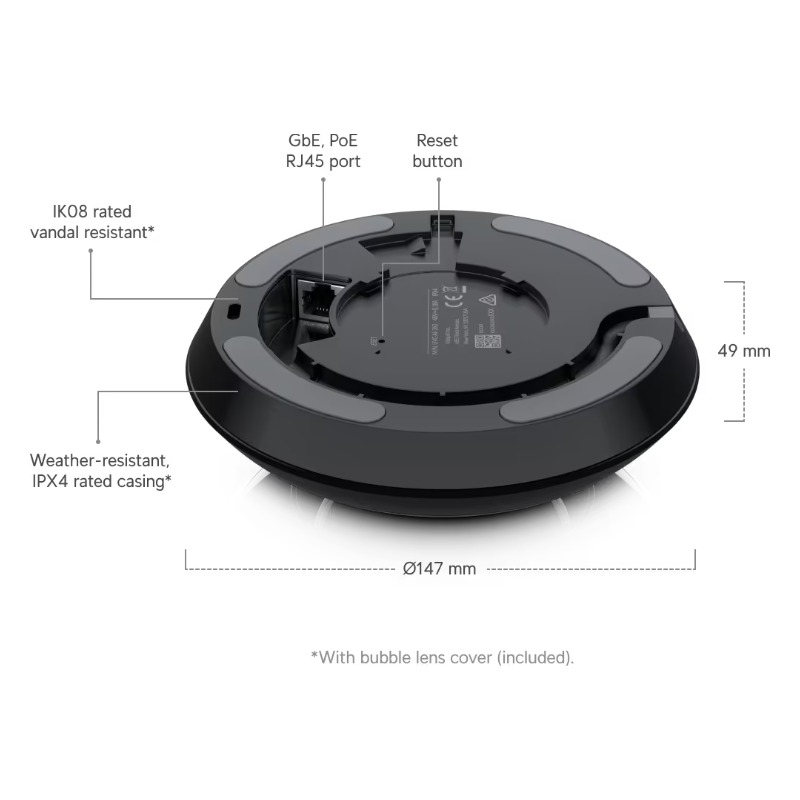

Ø147 x 49 mm |
|
Weight |
Without mount: 655 g
With outdoor accessory: 685 g |
|
Enclosure materials |
Aluminum alloy, polycarbonate, hard-coated dome |
|
Mounting materials |
Polycarbonate, stainless steel |
|
Weatherproofing |
IPX4 |
|
Resistance |
IK08 |
|
Optics |
|
Sensor |
5 MP CMOS sensor |
|
Lens |
Fisheye lens |
|
View angle |
360° |
|
Night mode |
Built-in IR LED illumination and IR cut filter |
|
Video |
|
Video compression |
H.264, MJPG |
|
Resolution |
1920 x 1920 (1:1) |
|
Maximum frame rate |
30 FPS |
|
Image settings |
Color, brightness, sharpness, contrast, white balance,
exposure control, 2DNR, 3DNR, masking, text overlay |
|
System |
|
Processor specs |
ARM® quad-core Cortex™-A53 |
|
Memory information |
2 GB LPDDR4 |
|
Flash memory support |
8GB eMMC |
|
Management interface |
UniFi Protect |
|
Networking interface |
GbE RJ45 port |
|
Power method |
PoE |
|
Power supply |
48VDC, 0.18A PoE |
|
Max. power consumption |
8.64W |
|
Supported voltage range |
37 to 57VDC |
|
Link/activity LED |
Yes |
|
Button |
Factory reset |
|
Operating temperature |
-20°C to 40°C |
|
Operating humidity |
10 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Audio |
|
Microphone |
Yes (can be disabled in software) |
|
Speaker |
Yes |
|
Software |
|
UniFi OS application |
UniFi Protect |
|
Mobile apps |
UniFi Protect iOS and Android |

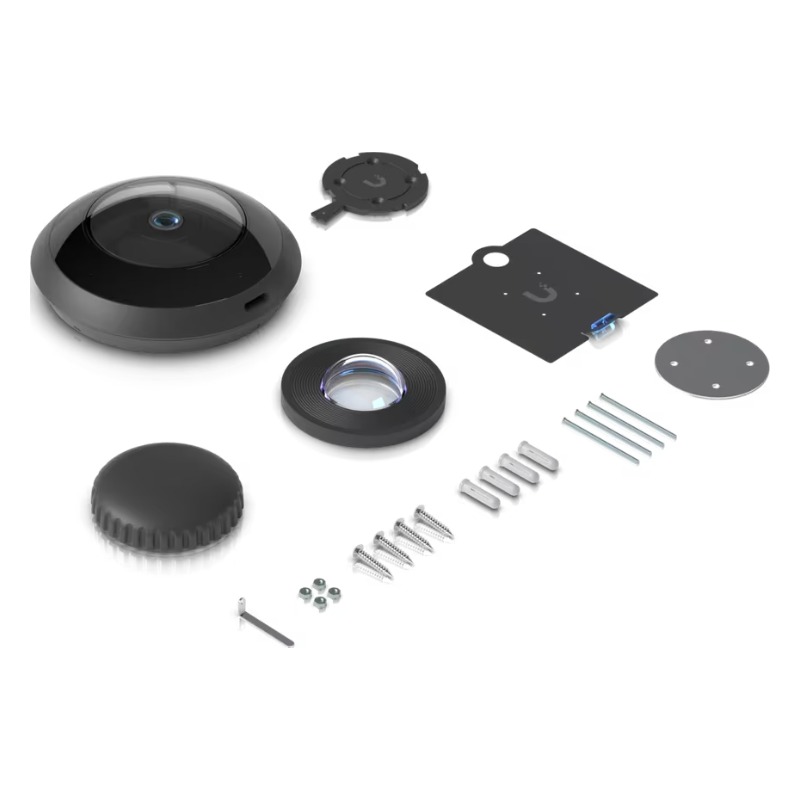

| Package Contents: |
|---|
| 1 x UVC-AI-360
|
| 1 x Pole, Ceiling and Wall Mounting Kit
|
| 1 x Protective dome
|
| 0 x Without PoE Adapter |
|
