Point-to-MultiPoint (PtMP) functionality can be added to the Rocket5ac Lite via a firmware upgrade to airOS®7.1 or higher.
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
The innovative airMAX ac antennas feature significant advances in beam and energy isolation performance for increased capacity of airMAX networks.
|
Connectors and Interfaces: |
|

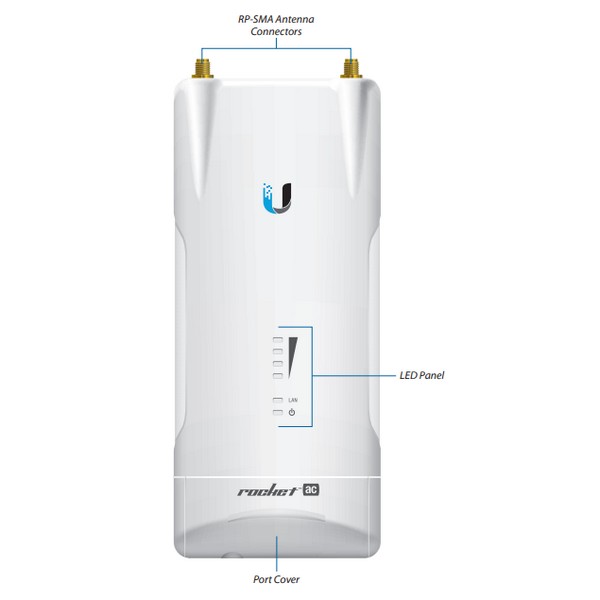

RF connectors: |
(2) RSMA female |
|
LAN speed: |
(1) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Hardware: |
|
RAM memory size: |
128 MB |
|
CPU: |
Atheros MIPS 74KC |
|
CPU frequency: |
720 MHz |
|
Physical characteristics: |
|
Purpose: |
Outdoor |
|

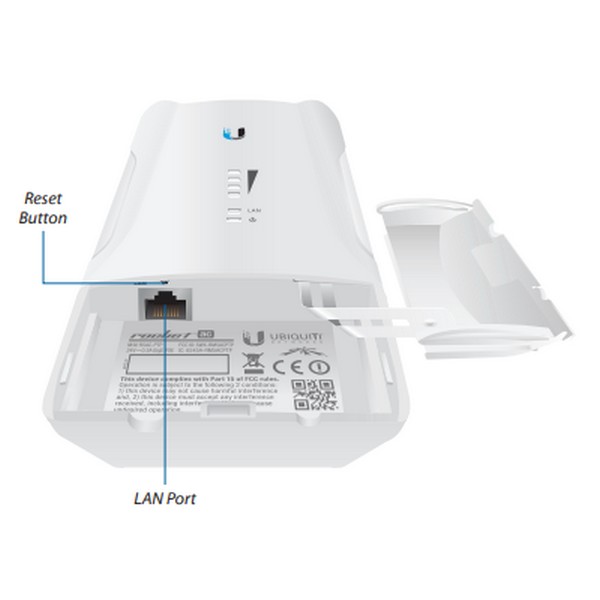

Buttons: |
Reset |
|
Operating temperature: |
-40°C up to 80°C |
|
Weight: |
250 g |
|
Depth: |
37 mm |
|
Width: |
84 mm |
|
Height: |
162 mm |
|
Power: |
|
Max. power consumption: |
8,5 W |
|
Power over Ethernet: |
20 .. 26V DC |
|
PoE type: |
Input |
|
Software: |
|
Operating mode: |
Client, AP Router, Access Point, Client Router (wisp) |
|
IPv6 support: |
Transparent (bridge mode) |
|
Default IP address: |
192.168.1.20 |
|
Default login and password: |
ubnt / ubnt |
|
Wireless features: |
|
Wireless frequency: |
5 GHz |
|
Transmission speed - WiFi 5GHz: |
866 Mb/s |
|
WiFi standards: |
airMAX ac |
|
Tx power 5GHz: |
27 dBm |
|
Security: |
WPA2 AES |
|
5GHz MIMO: |
2 x 2 |
|
Type of antenna: |
Detachable |
|
Detachable antennas: |
2 |

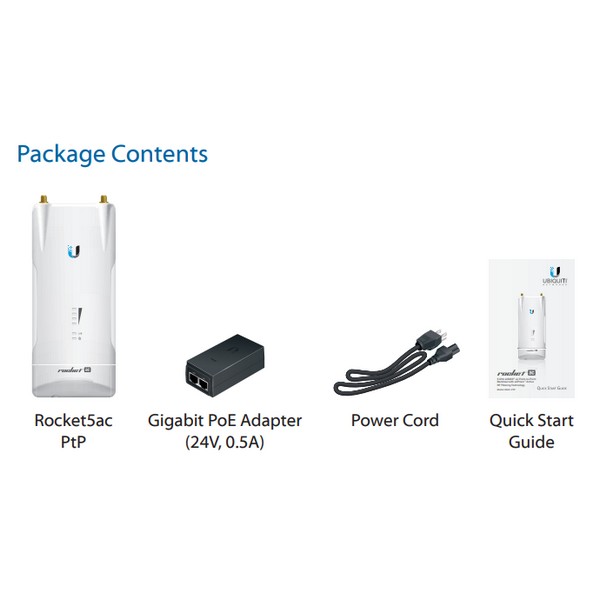

| Package Contents: |
|---|
| 1 x R5AC-LITE
|
| 1 x Gigabit PoE Adapter 24V, 0.5A
|
| 1 x Power Cord |
