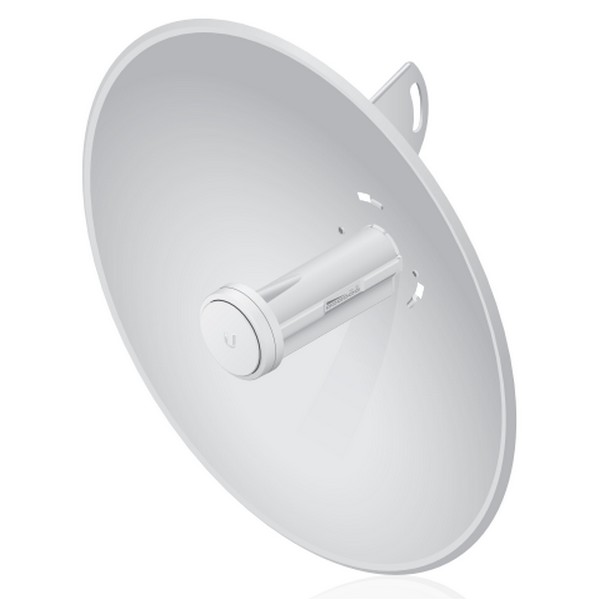

PBE-M5-400
Incorporating a dish reflector design with advanced technology, the PowerBeam is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.

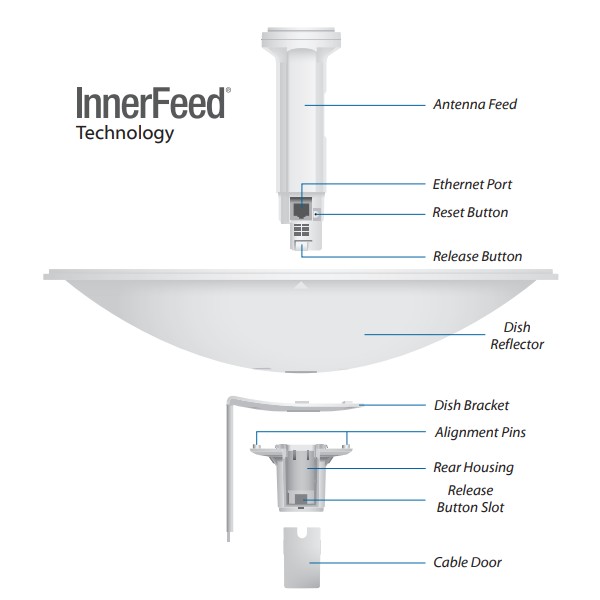

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna; this improves performance because it eliminates cable losses.
The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
|
Specifications: |
|
CPU |
Atheros MIPS 74KC, 560 MHz |
|
Memory |
64 MB DDR2, 8 MB Flash |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Max TX |
26 dBm |
|
Operating frequency |
5170 - 5875 |
|
Gain |
25 dBi |
|
Channel Sizes |
5/8/10/20/30/40 MHz |
|
Polarization |
Dual Linear |
|
Dimensions |
420 x 420 x 275 mm |
|
Weight |
1.753 kg |
|
Power Supply |
24V, 0.5A PoE |
|
Power Method |
Passive PoE
(Pairs 4, 5+; 7, 8 Return) |
|
Wind Loading |
77 lbf @ 125 mph |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Mounting |
Pole-Mount Kit Included |
|
ESD/EMP Protection |
Air: ±24 kV, Contact:± 24 kV |
|
Operating Temperature |
-40°C to 70°C |
|
Operating Humidity |
5 to 95% Non-Condensing |
|
Wireless Approvals |
FCC, IC, CE |
|
RoHS Compliance |
Yes |

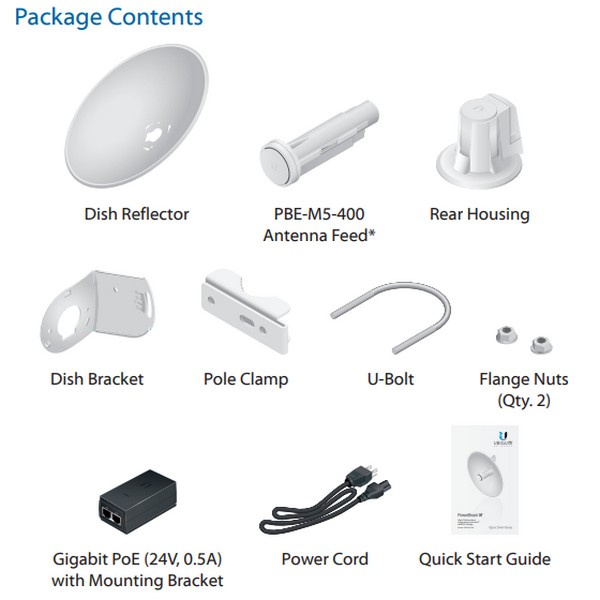

| Package Contents: |
|---|
| 1 x PBE-M5-400
|
| 1 x Pole Mounting Kit
|
| 1 x PoE Adapter 24V, 0.5A
|
| 1 x Power Cord |
|
