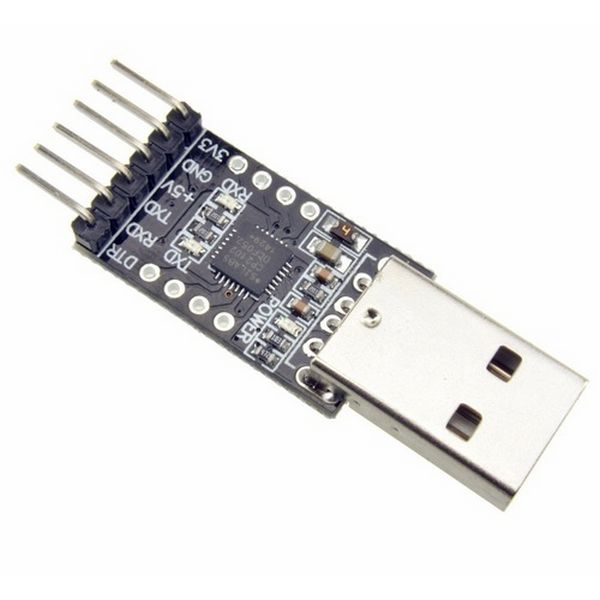

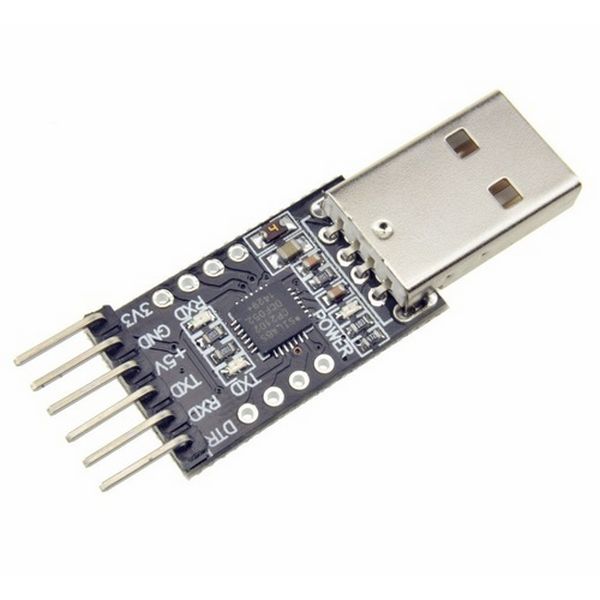

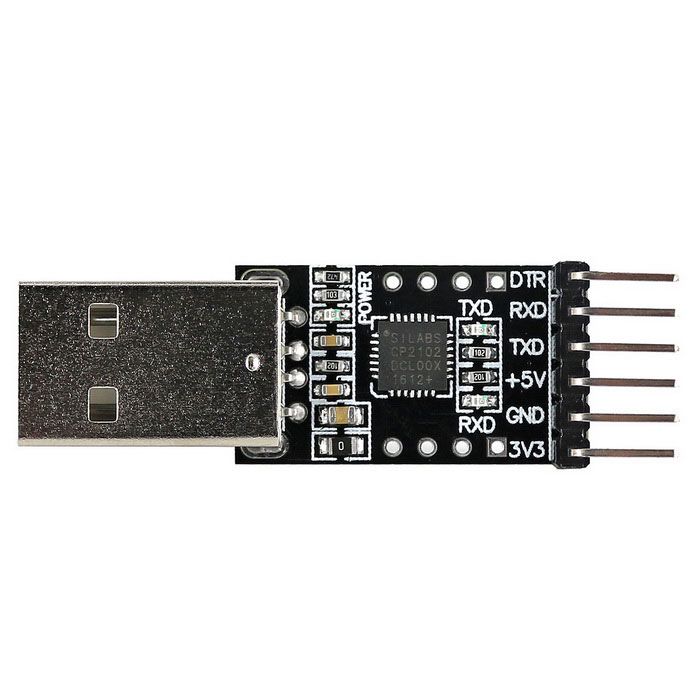

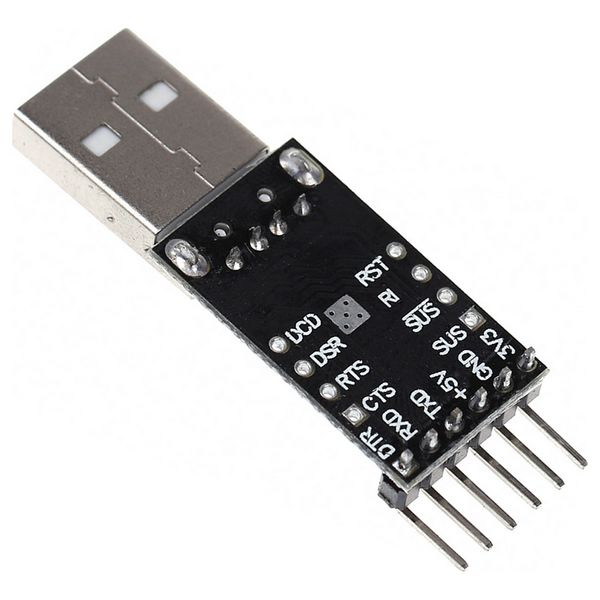

The CP2102 is a USB 2.0 to TTL UART 6PIN Module Serial Converter.
-
Stable and reliable chipset CP2102
-
USB specification 2.0 compliant with full-speed 12Mbps.
-
Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
-
All handshaking and modem interface signals.
-
Baud rates: 300 bps to 1.5 Mbps.
-
Byte receive buffer; 640 byte transmit buffer.
-
Hardware or X-On/X-Off handshaking supported.
-
Event character support Line break transmission.
-
Temperature Range: -40 to +85.
-
Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
-
PCB Size: 25mm x 16mm
-
Overall Size: 42mm X 16mm.
| Package Contents: |
|---|
| 1 x CP2102 USB to TTL adapter |
|
