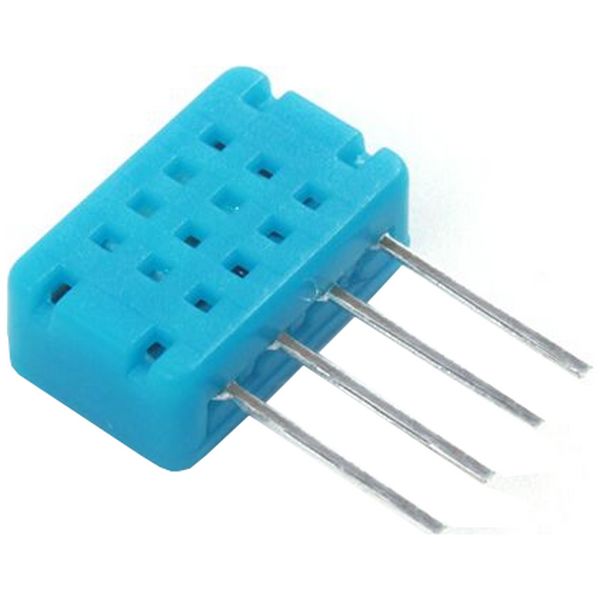

DHT12 Temperature/Humidity Sensor
DHT12 can be either I2C or 1-Wire (Connect SCL to GND when used as 1-Wire)
DHT12 output calibrated digital signal. It utilizes exclusive digital-signal-collecting-technique and humidity sensing technology, assuring its reliability and stability.
Its sensing elements is 16-bit.
Every sensor of this model is temperature compensated and calibrated in accurate calibration chamber and the calibration-coefficient is saved in OTP memory.
Small size & low consumption & long transmission distance(20m) enable DHT12 to be suited in all kinds of harsh application occasions.
Single-row packaged with four pins, making the connection very convenient
|
Προδιαγραφές |
|
Sensor |
DHT12 |
|
Interface |
I2C / 1-Wire |
|
Power supply |
3-5.5V DC
|
|
Sensing element |
Polymer resistor |
|
Range
|
Humidity 20-95%RH
Temperature -20 to +60 Celsius
|
|
Sensing period |
Average: 2s
|
|

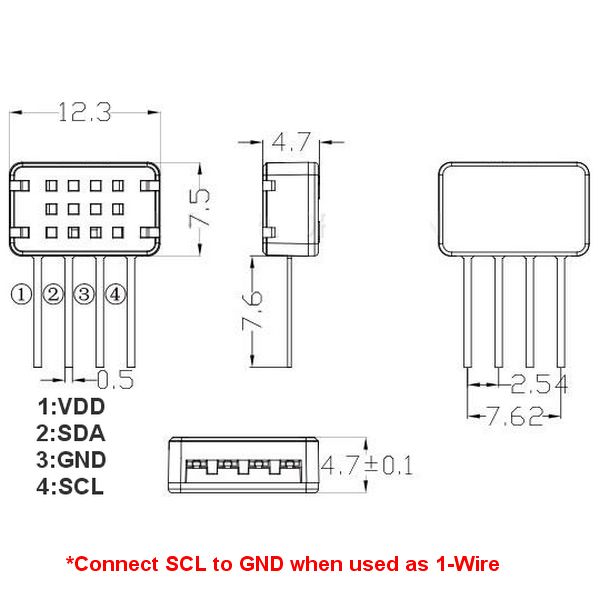

Διαστάσεις |
12.3*4.7*7.5mm |
