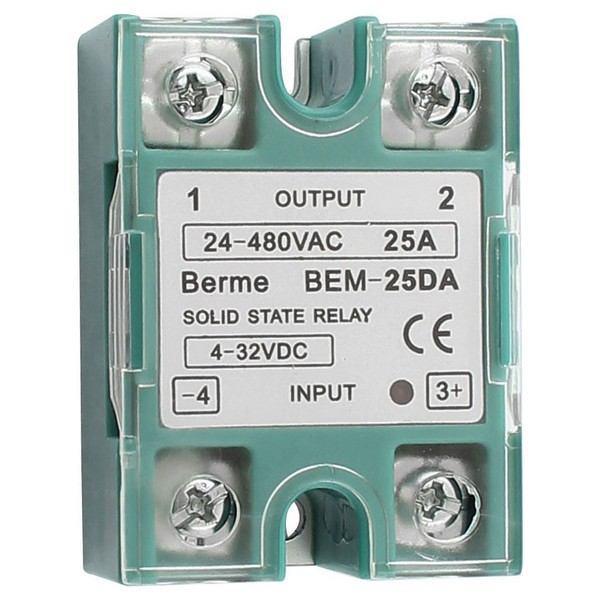

BEM-25DA BERME 25A Output AC24-380V Solid State Relay
[2096][IOT-BEM-25DA]
Price: 5,44€
 Order or Qty  Price
 > 500€  5+   5,33€
 > 1000€  10+   5,22€
 > 2000€  20+   5,11€
 > 5000€  40+   5,00€
 > 10000€  100+   4,90€
Prices exclude VAT

BEM-25DA BERME 25A Output AC24-380V Solid State Relay
No Stock
Order Qty:

BEM-25DA

Features:

  • 25A Solid State Relay
  • Long service life and high reliability.
  • Highly reliable, compact size designed to offer users maximum simplicity.
  • Fast switching.
  • Reduced electromagnetic interference.
Specifications
Control mode:  DC-AC
Loading current: 25A
Loading voltage: 24 - 380VAC
Control voltage: 3 - 32VDC
Control current:  3-25MaDC
On voltage: ≤1V
One-off Time:  ≤10ms
Off leakage Current: ≤2Ma
Dielectrics voltage-resistance: 2500VAC
Insulation resistance:  500MΩ/500VDC
Installation method:  Bolt fixation
Environment temperature:  -30℃-+75℃
Working indicator:  LED
Color:  Blue

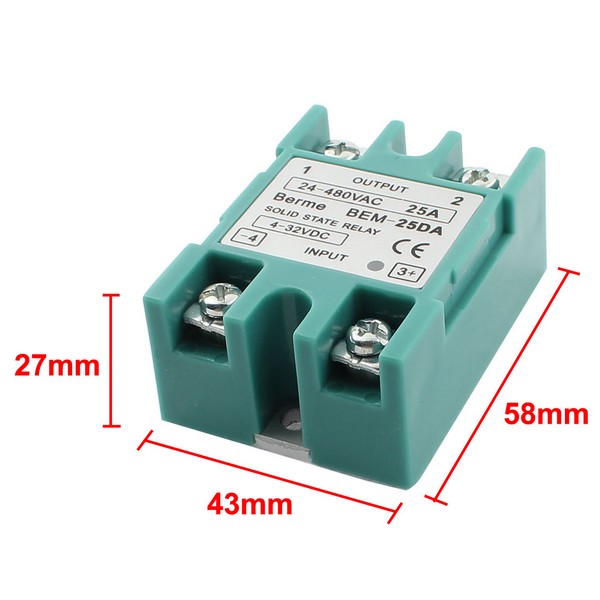

Item size:  60x45x23mm
Net weight:   97g

Package Contents:
1 x BEM-25DA
