LT400 2.0 - 4G Cat. 4 N300 2.4GHz Wi-Fi Router
Plug in a nano SIM card and connect 4G with a DL speed of anup to 150 Mbps. Share the connection via a N300 Wi-Fi to up to 32 devices.
-
4G Cat. 4 with Max 150 Mbps DL
-
300 Mbps Wi-Fi
-
4× Fast Ethernet Ports
-
1× Nano SIM Slot
-
VPN Server and Client
-
Cudy App
Specifications: |
Part # |
LT400 2.0 |
Chipset |
MT7628 |
CPU Details |
580 MHZ Single-Core, MIPS24KEC |
Flash/ROM |
8 MB (64 Mbit ) NOR |
DDR/RAM |
64 MB (512 Mbit) DDR2 |
Cellular Standards |
4G Cat. 4 |
Cellular Antennas |
2× Fixed |
SIM Options |
1× Nano SIM Slot |
Max DL Speed |
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) |
Max UL Speed |
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) |
Advanced |
DL 2×2 MIMO |
Cellular Bands |
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8 |
2.4 GHz Wi-Fi Speed |
300 Mbps |
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
Wi-Fi Antennas |
2× Fixed |
Beamforming |
True |
Range Performance |
Max: 130 m |
Wall Performance |
One wooden walls with thickness < 10 cm
One concrete wall with thickness < 10 cm |
Physical Buttons |
Reset Button |
10/100 Mbps RJ45 Ports |
4 |
Ethernet Notes |
1 x WAN/LAN + 3 x LAN |
LED |
System |
Power Input |
DC Jack |
Power Methods |
DC |
DC |
12V 1A |
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
ESD Contact Protection |
4kV |
ESD Air Protection |
8kV |
Operating Temperature:
Storage Temperature: |
0 ℃ ~ 40 ℃
-40 ℃ ~ 70 ℃ |
Certifications |
FCC, CE |

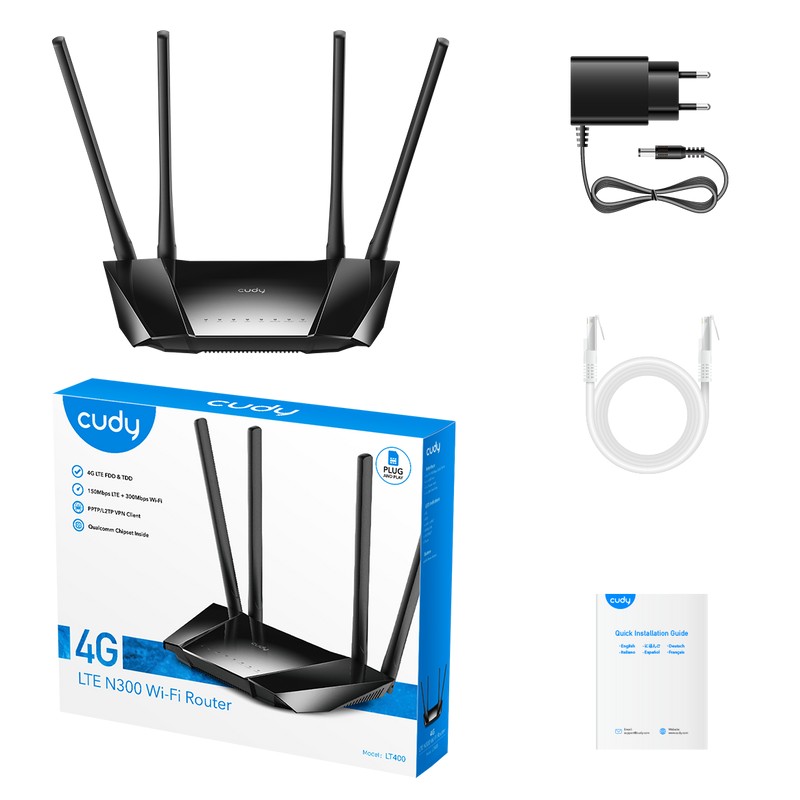

Package Contents: |
1 x LT400
|
1 x RJ45 Ethernet Cable
|
1 x Power Supply
|
1 x Installation Guide |
|
