Aerial.net :: EZ4 PCB + 1 mPCI slot + IkarusOS Bundle

EZ4PCBNW

EZ4 PCB + 1 mPCI slot + IkarusOS Bundle
[0390][EZ4PCBNW]

The product is
no longer available

Prices exclude VAT

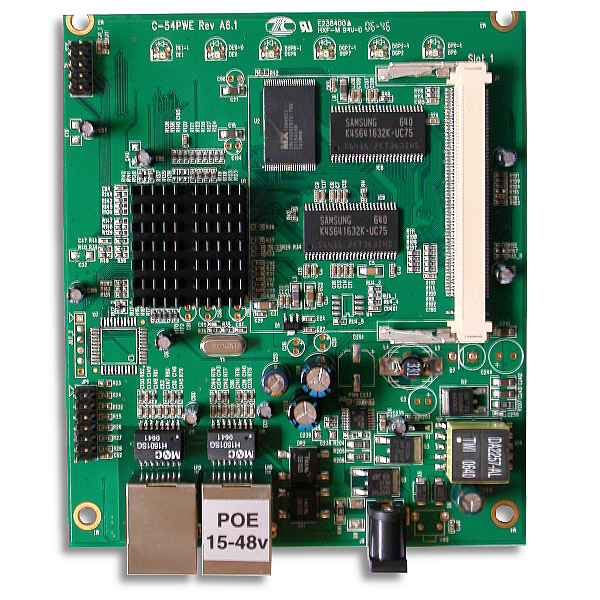

The e-zy.net EZ4 Access Point is a high-performance AP that is designed for enterprise and public access application.

Product Links:
Support Page	IkarusOS Manual	Ikarus NMS	Dimensions
Firmware

Technical Specifications :
Processor		Infineon ADM5120 @ 175MHz
Memory		16MB SDRAM
Flash		4MB
Ports (physical)		1 x Type III Mini-PCI Slots 2 x 10/100 Base-TX Ethernet Ports (with Auto MDI/MDIX)
Power over Ethernet		18v-48v Passive PoE or 802.3af PoE
DC Jack		5VDC Input Voltage (Separate from PoE)
Operating Temperature		-20°C to 70°C
Dimensions		155 x 107.6 x 1.8

The device comes without a miniPCI radio and you can choose your own from a list of IkarusOS supported interfaces :

NOTE :	* The second LAN port acts as a switch, not a secondary ethernet interface.
	* Outdoor case sold separately in our Outdoor Case section
	* mPCI interfaces sold separately in our mPCI section
	* Pigtails sold separately in our Pigtail section

Package Contents:
1 x

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
