Aerial.net :: 19dBi 5.1-5.8GHz Low profile Rootenna

R2T58LW-19

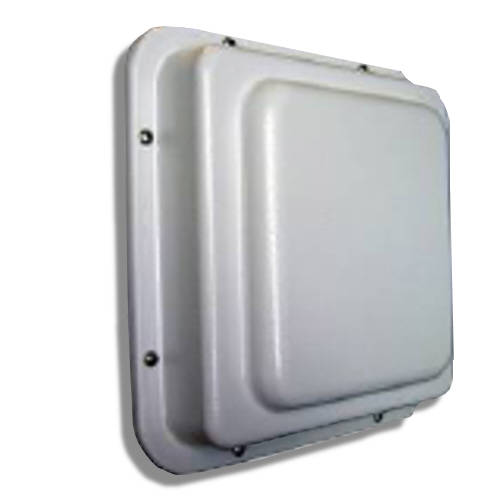

19dBi 5.1-5.8GHz Low profile Rootenna
[0283][R2T58LW-19]

The product is
no longer available

Prices exclude VAT

Description :

The RooTenna® 2 panel antenna offered by Pacific Wireless was developed to allow integration of the customers’ radio equipment inside the weatherproof compartment. The expanded radio compartment is big enough to house transceivers, amplifiers, and other electronic equipment. The antenna design utilizes a wideband element array over a solid 8.5” square backplane for consistent performance over a wide bandwidth. The housing is UV stabilized ABS plastic. The backplate is alodine coated aluminum with stainless steel fasteners. All bracket fasteners are stainless steel for corrosion protection. There are qty 4 8-32 threaded standoffs provided inside the enclosure for customer mounting. Included with the Roo2 are a customer mounting plate and an RJ45 passthru Ethernet feedthru.

Datasheet

Features :

Compact 19 dBi Antenna Gain
9” x 9” x 1” Weatherproof Radio Compartment
Vertical or Horizontal Polarization, Beamwidth 35 deg
SMA Female connector

NOTE : Pigtail sold seperately in our Rootenna pigtail section

Parameter	Min	Typ	Max	Units
Frequency Range	5150		5850	MHz
VSWR		1.5:1
Impedance		50		OHM
Input Power			20	W
Operating Temperature	-45		+70	Deg C
Gain		19		dBi
3db Beam Angle (E-Plane)		15		Deg
3dB Beam Angle (H-Plane)		15		Deg
Front to Back	25			dB
Weight		0.8		kg
Outside Dim (L x W x H)	267 x 267 x 67			mm

This product consists of the following components:

1 x Mounting Bracket for small RooTenas	1 x Small Rootenna backplate	1 x Customer Install Plate	1 x RJ45 Ethernet Connector System
1 x 19dBi 5.1-5.8GHz Low profile Panel Antenna with Radio Pouch
