Aerial.net :: MikroTik Routerboard 112 (Level 4) WISP AP

MikroTik » RB112

MikroTik Routerboard 112 (Level 4) WISP AP
[0230][RB112]

The product is
no longer available

Prices exclude VAT

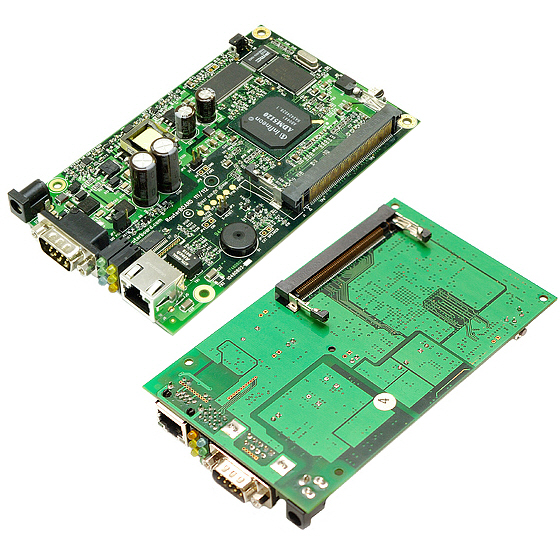

Introducing the RouterBOARD 100 series, the perfect low cost CPE.

This tiny board is the simpler and more affordable version of the best selling RouterBOARD series. With all built in, plus two miniPCI slots, you almost can't believe that it is so small and cheap, although it still has the built quality and power of a RouterBOARD. Bundled with MikroTik RouterOS this will be your perfect solution

User's Manual

See below table for details:

RouterBOARD 112 Specifications
CPU	MIPS32 4Kc based 175MHz embedded processor
Memory	16MB SDRAM onboard memory chip
Boot loader	RouterBOOT, 1Mbit Flash chip
Data storage	64MB onboard NAND memory chip
Ethernet ports	One 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X
MiniPCI slot	Two MiniPCI Type IIIA/IIIB slots
Speaker	Mini PC-Speaker
Serial ports	One DB9 RS232C asynchronous serial port
LEDs	Power, 2 LED pairs for MiniPCI slots, 1 user LED
Speaker	Mini Speaker present. Can be used for wireless alignment
Power options	IEEE802.3af Power over Ethernet: 12V or 48V DC (except power over datalines) Power jack: 11..60V DC
Power Out	Two 3V DC fan power output headers (only one populated by default), maximal output current - 0.5A total
Power Consumption	3-4W without extension cards. Maximum – 10W
Dimensions	14.0 cm x 8.5 cm (5.51 in x 3.35 in)
Weight	92 g (3.2 oz)
Temperature	Operational: -20°C to +70°C (-4°F to 158°F)
Humidity	Operational: 70% relative humidity (non-condensing)
Currently supported OS	RouterOS 2.9.12

Note:	Indoor case can be found here
	Outdoor case can be found here

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	24 month(s)
