Low cost 5.x GHz CPE
The new Mikrotik RB411 including level3 license, bundled with the Mikrotik R52 802.11a/b/g mPCI, housed in the 23dB wide band 5.xGHz ARL-5824s.
ARL-PE5824S Panel Antenna :
The Panel antenna is constructed of high grade PCB with silver plated pads, UV Resistant ABS plastic radome with aluminum backplate and SMA connector.

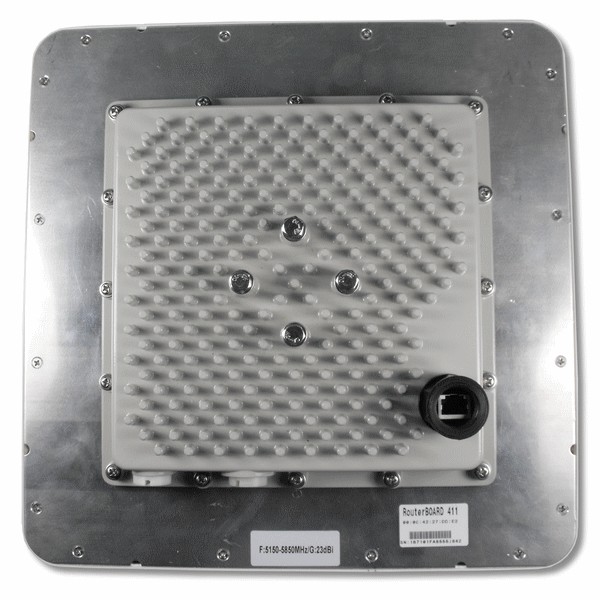

The enclosure is an Aluminum-Magnesium (Al-Mg) alloy die cast construction which is then UV powder coated for additional environmental protection, durability and aesthetics.

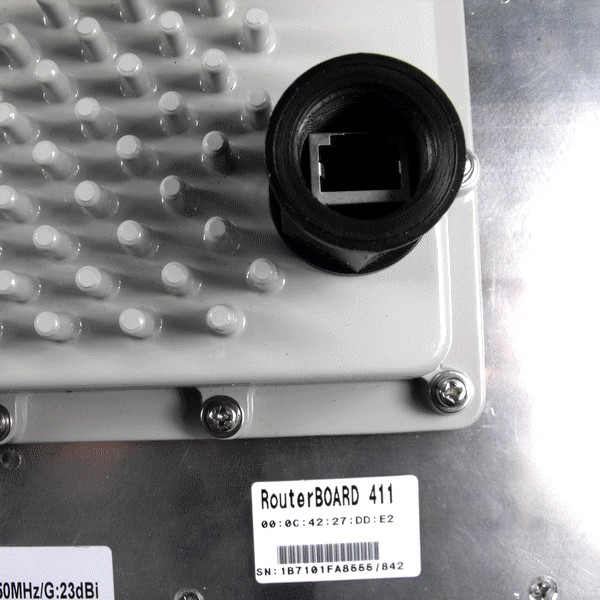

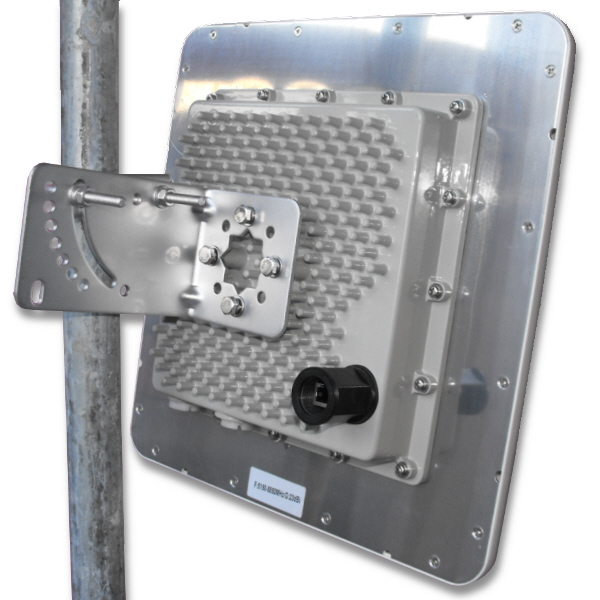

The antenna comes complete with the Panel (SMA connector), Die cast enclosure, RJ45-ECS, 2 optional N Type threaded holes, and heavy duty mounting bracket. The bracket gives up to 45o of tilt angle.
The antenna can be installed in Vertical or Horizontal Polarization.

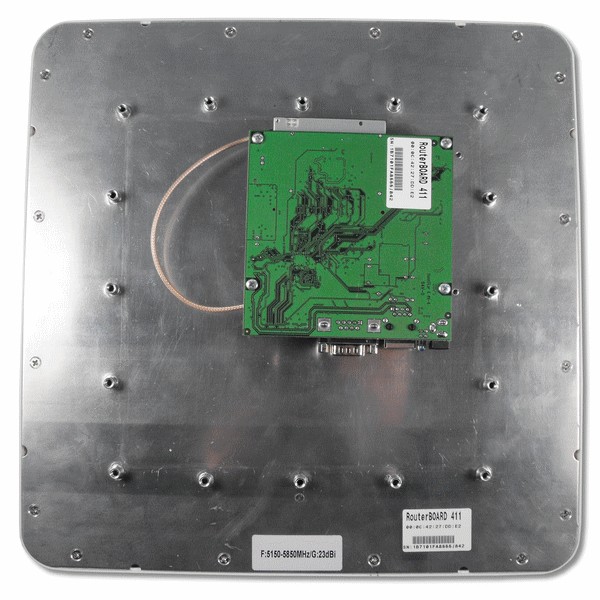

Mikrotik RB/411:
Much faster than it’s predecessors the RB411 is The CPE.
The heart of this device is the new Atheros CPU which makes this tiny device a quick one.
Tests show that it is up to three times more powerful than our previous model.
RB411 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router/firewall or bandwidth manager.
One small device - with all the power of RouterOS.
The bundle completes a 18v power supply and PoE Injector.
NOTE : Pigtails sold seperately in our Rootenna pigtail section
| RouterBOARD 411 Specifications : |
| CPU |
Atheros AR7130 300MHz embedded processor |
| Memory |
32MB SDRAM onboard memory chip |
| Boot loader |
RouterBOOT, 1Mbit Flash chip |
| Data storage |
64MB onboard NAND memory chip |
| Ethernet ports |
One 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X |
| MiniPCI slot |
One MiniPCI Type IIIA/IIIB slots |
| Speaker |
Mini PC-Speaker |
| Serial ports |
One DB9 RS232C asynchronous serial port |
| LEDs |
Power, 1 LED pairs for MiniPCI slot, 1 user LED |
| Speaker |
Mini Speaker present. Can be used for wireless alignment |
| Power options |
Power over Ethernet:10..28V DC |
| Power Consumption |
3-4W |
| Temperature |
Operational: -20°C to +70°C (-4°F to 158°F) |
| Humidity |
Operational: 70% relative humidity (non-condensing) |
| Currently supported OS |
RouterOS 3.x Level3 included |
| Antenna Parameters |
Min |
Typ |
Max |
Units |
| Frequency Range |
5150 |
|
5850 |
MHz |
| Input Return Loss (S11) |
< |
-14 |
|
dB |
| VSWR |
|
1.5 : 1 |
|
| Impedance |
|
50 |
|
OHM |
| Input Power |
|
|
50 |
W |
| Operating Temperature |
-45 |
|
+70 |
Deg C |
| Gain |
22 |
23 |
24 |
dBi |
| 3dB Beam Angle |
|
11 |
|
Deg |
| Front to Back |
|
>30 |
|
dB |
| Cross Pol Rejection |
|
26 |
|
dBi |
| Side Lobe |
|
|
-20 |
dB |
| Antenna Weight |
|
2.6 |
|
Kg |
| Enclosure Weight |
|
1.3 |
|
Kg |
| Antenna Dimensions |
30.6 x 30.6 x 25 |
cm |
| Enclosure Dimensions |
25 x 25 x 40 |
cm |
| Wind Speed (MPH) |
Loading (145 sq. in.) |
| 100 |
36.5 lb. |
| 125 |
57.0 lb. |
|
|
|
| Package Contents: |
|---|
| 1 x
|
| 1 x RB/411
|
| 1 x R52
|
| 1 x UFL to RA-SMA Male pigtail
|
| 1 x
|
| 1 x Mounting Bracket KIT
|
| 1 x 18v Power Supply EURO plugs
|
| 1 x PoE Injector |
| This bundle contains the following products: |
| |
|
|
| |
|
