Aerial.net :: EZ3_v2 250mW PCB + 15dB Rootenna + PoE Bundle

Outdoor 2.4GHz » 2.4GHz » EZ3R14B

EZ3_v2 250mW PCB + 15dB Rootenna + PoE Bundle
[0252][EZ3R14B]

The product is
no longer available

Prices exclude VAT

802.11b/g - 250mW - PoE

Overview :

The EZ3+ Series wireless Access Point, based on IEEE 802.11b/g technology, delivers access point features enabling cost effective access for mobile and fixed wireless users.
In addition, the EZ3+ Series supports IEEE 802.1x compliant and RADIUS, the most up-to-date wireless security solution for applications in public places.
The standard protocol format allows WISPs (Wireless Internet Service Providers) bill the usage of their wireless services through EZ3+ Series through their RADIUS servers. Moreover, the EZ3+ Series provides standard and advanced WDS (Wireless Distribution System) bridge functionality joining LAN segments that may be geographically separated to a complete network.
Up to 6 WDS bridge links work in AP function simultaneously, enabling LAN segments to be flexibly connected to mirror any network topology which a traditional wired network can achieve.
The bundled Antenna Alignment Utility provides the at-a-glance way to easily assist the antenna deployment through the friendly web based user interface.
The default PoE functionality allows the power feeding by Ethernet cable to eliminate the additional power line requirement in special install environment.
With the sleek and intuitive Web-based user interface, the EZ3+ can be easily managed and satisfied by system integrators’ various requirements.
Multiple Graphs make troubleshooting a 3 step process. The over all RSSI, Traffic, and Packet/Byte graphs provide all the necessary device history information over a period of 24 hours.

The EZ3+ comes complete with Cat5e rated POE (Power Over Ethernet) power inserter with LED and 18VDC auto-ranging power supply.

Product Links:
Datasheet	Quick Guide	User Guide	Firmware
Utility

Key Features
IEEE 802.11b/g: 802.11b/g 54Mbps Device 64/128 bit WEP Enabling/disabling SSID broadcasts MAC-address-based access control WPA (IEEE 802.1x + TKIP) EAP-MD5 / EAP-TLS / EAP-TTLS / PEAP / WPA-PSK / WPA-TKIP WDS for 6 wireless bridge links Antenna Alignment Utility Transmit power control	Functionaliy Modes: BR1+ : Access Point Bridge AP Client Bridge Wireless Distribution System (WDS) WDS + Access Point Point To Point Universal Repeater optional on all modes
DHCP Server : Static DHCP mappings Current DHCP mappings Listing	Firmware Upgrade : HTTP-based TFTP-based
Configuration Tools : Configuration backup/restore Configuration reset Configuration Manager	Management : Windows-based discovery Tool Web-based management UI Telnet
Power over Ethernet : On Board PoE PoE Injector	Watchdog Timer : Hardware Software

Package Contents:
1 x EZ3R15B (Rootena+EZ3+pigtail+RJ45-ECS)
1 x Mounting Bracket kit
1 x
1 x

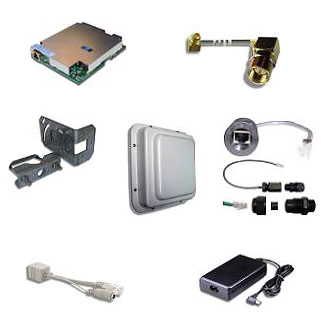

This bundle contains the following products:

1 x 2.4Ghz 15dBi Rootenna Low Profile Panel Antenna with Radio Pouch	1 x EZ3_v2 PCB 250mw 24dB 802.11b/g	1 x 18v 0.8A Power Supply Wallplug	1 x Passive PoE Injector with LED cat5 Plug, cat5 Jack, cat5 cable
1 x MMCX Right Angle to Right Angle SMA 25cm (Rootenna)

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
