Aerial.net :: DCOAE-S Die Cast Outdoor Aluminum Enclosure

Cases / Racks » DCOAE-S

DCOAE-S Die Cast Outdoor Aluminum Enclosure
[0288][DCOAE-S]

The product is
no longer available

Prices exclude VAT

Description :

The DCOAE series Die Cast Outdoor Aluminum Enclosures are designed for long life in outdoor environments.
The pole mount hardware includes galvanized pole clamps and U bolts and attachment nuts.

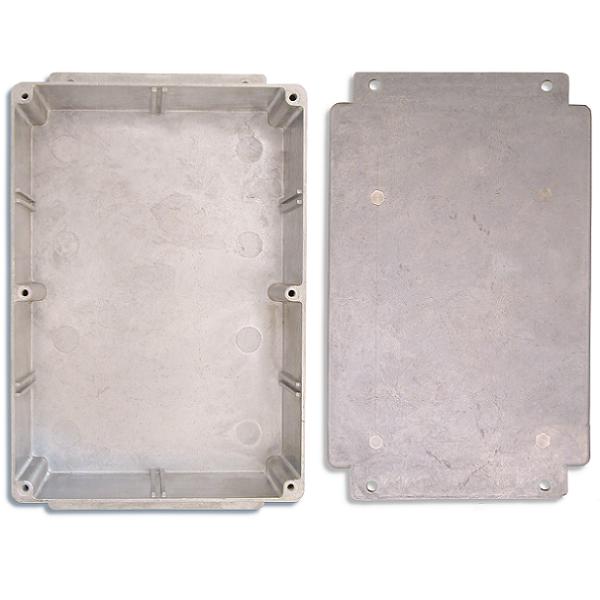

The die cast enclosure has mounting flanges for reliable mounting to poles or surface mounting to walls.
Rated to IP66 standards.

The DCOAE-S comes with choice of mounting standoffs for the following PCB:


RB411/A/AH	EZ4

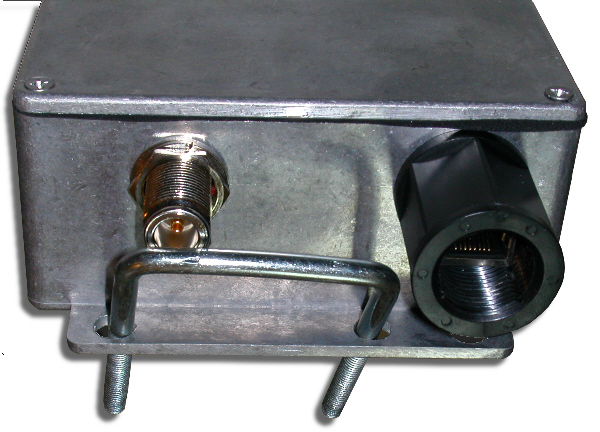

There is 1 x 20mm hole on the bottom side for either the RJ45-ECS Ethernet Connector System or the RJ-45 Feedthru
There is 1 x N-type pigtail hole on the bottom of the enclosure.

Dimensions

Specifications :

Constructed of aluminum alloy
Natural aluminum color / finish
2 x pole mounting brackets (1" to 1_^1/2")
6 tapped holes on the body for the cover
Self adhesive gasket
M3.5 countersunk stainless steel screws to secure the cover
IP66 Rated

Package Contents :

1 x Aluminum Enclosure
2 x Mounting bracket KIT
1 x Self Adhesive Gasket
6 x M 3.5 Countersunk Stainless Steel screws
4 x M 3.0 PCB screws

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
