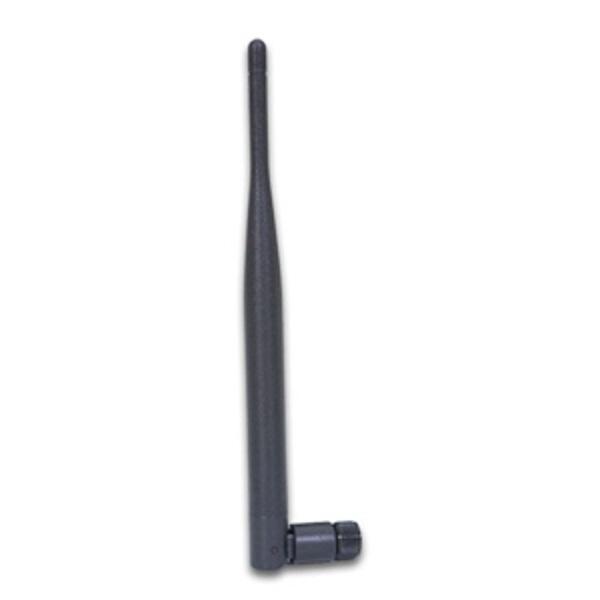

Antenna 2.4GHz » Indoor » IN24-5RD-RSMA
2.4GHz 5.5dBi OMNI Range Extender RP-SMA
[0047][IN24-5RD-RSMA]
The product is
no longer available
Prices exclude VAT

2.4GHz 5.5dBi OMNI Range Extender RP-SMA

Description :

The new APXtender indoor range extender antennas are designed to allow you to get more range out of your existing indoor wireless equipment.

The antennas feature high gain in an aesthetic package. Because of their high gain the user can expect doubled signal strength when compared to the standard 2.2dBi rubber duck antenna which comes standard on many wireless equipment.This will increase range by about 50% and increase signal strength to allow the wireless equipment to operate at optimal speed.

The Low Cost 5.5dBi Rubber Duck Antenna can be used to replace the original 2.2dbi rubber duck antenna which comes standard on many wireless equipment. With it?s high gain performance it can effectively double the signal strength and give increased operational range to existing wireless equipment.

It is only 7.75" in length and is available with Reverse Polarity SMA connector.

Datasheet

Parameter Min Typ Max Units
Frequency Range 2400   2483 MHz
Gain   5.5   dBi
Ver Beamwidth
  50o   Deg
Hor Beamwidth
  360o   Deg
VSWR   1.5:1
Impedance   50   Ohm
Input power     10 Watt
Operating Temperature -10   +70 Deg C
Connector   RP-SMA
Weight   34   gr
Dimensions   205 x 14.5D   mm
