ESP8266 Vertical Adapter with ESP-12D, 32 MBit, 5v Support
[1819][IOT-EZ-E12D5]

The product is
no longer available

Prices exclude VAT

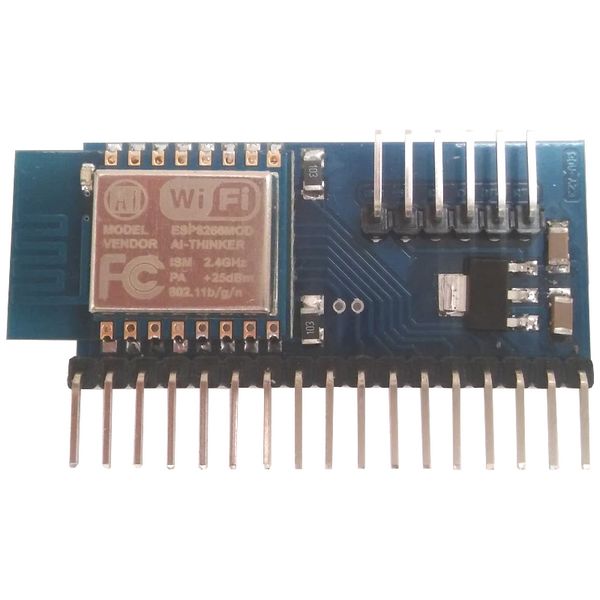

EZ-E12D5 is an SMD to SIP Vertical Adapter Board with ESP8266, ESP-12D 32Mbit module with 5v support.

It is a breadboard friendly adapter as all pins are in a single straight 2.54mm spaced pin header.

The 6xPIN programmer header located on the top right is used for attaching the EZ-PR5 (sold separately) USB to uart module.

The combination of EZ-E12D5 and EZ-PR5 results to buttonless programming by utilizing GPIO-00 and RST pins temporarily to put the device in programming mode.

The package includes :

1 x ESP-12D
1 x EZ-AD5 adapter board
1 x 17 pin GPIO header
1 x 6 pin UART header.

Specifications :

Vertical Installation
Breadboard friendly
Button-less programming
10K resistor between CH_PD and VCC
10K resistor between GPIO-15 and GND

All components are pre-soldered and tested individualy.

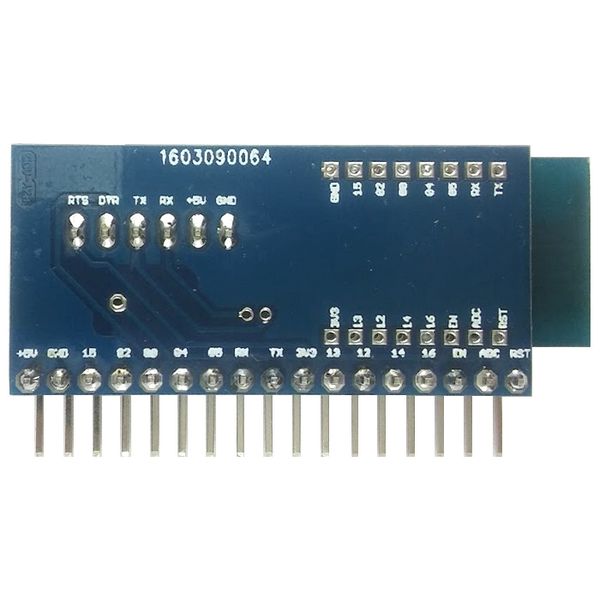

Additional Images:
