Aerial.net :: Ubiquiti NBE-M5-19, 5GHz NanoBeam, AIRMAX, 19db, AP-CPE

NBE-M5-19

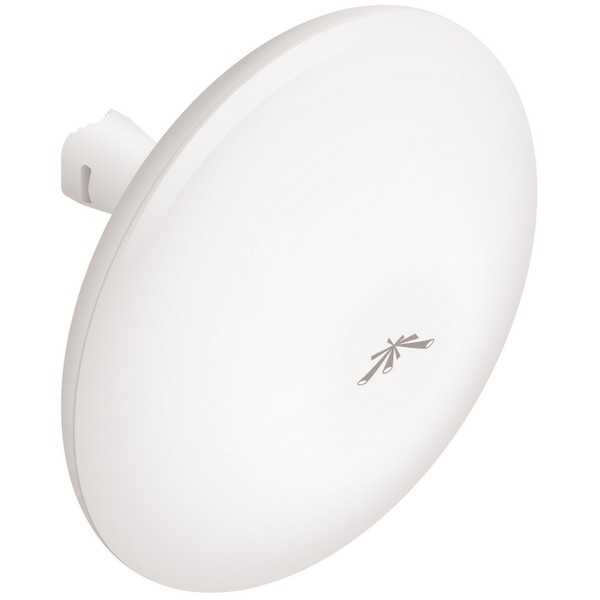

Ubiquiti NBE-M5-19, 5GHz NanoBeam, AIRMAX, 19db, AP-CPE
[1397][NBE-M5-19]

The product is
no longer available

Prices exclude VAT

UPC:	810354022470

NBE-M5-19

With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved.

All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint..

Efficient footprint The radio and antenna are combined into a single body that takes up minimal space.

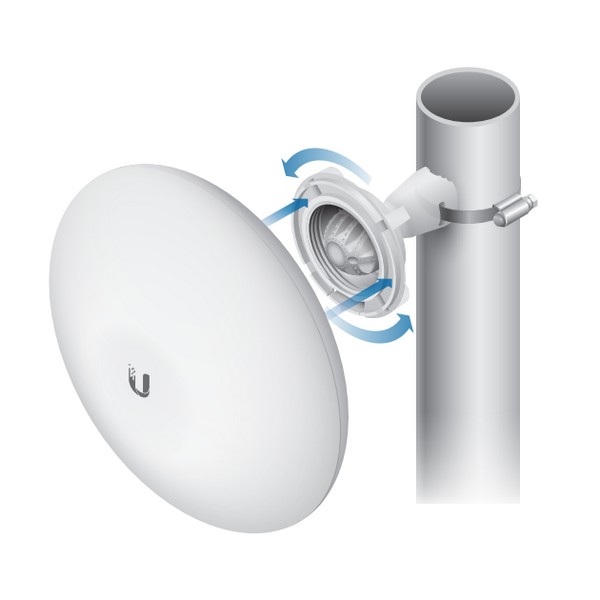

Versatile mounting The NanoBeam can be mounted in almost any position needed for line of sight.

Product Links:
Datasheet	Quick Start Guide	airOS

Specifications:
Processor Specs	Atheros MIPS 74KC, 560MHz
Memory Information	64MB SDRAM, 8MB Flash
Networking Interface	1 X 10/100 Ethernet Interface
Regulatory / Compliance information :
Wireless Approvals	FCC Part 15.247, IC RS210, CE
RoHS Compliance	YES
Physical - Electrical - Environmental :
Enclosure Size	189 x 189 x 125 mm
Weight	0.530 kg
Enclosure Characteristics	Outdoor UV Stabalized Plastic

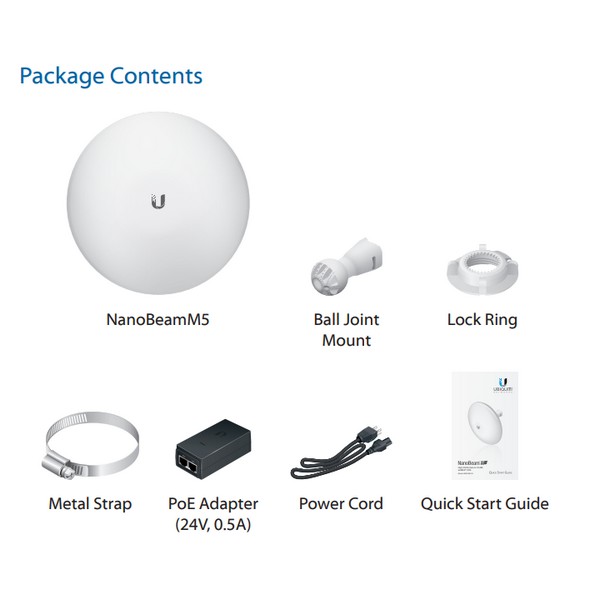

Mounting Kit	Pole Mounting Kit included
Max Power Consumption	8 Watts
Antenna Gain	19dBi
Power Supply	24V Carrier POE Adapter Included (POE-24)
Power Method	Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature	-40C to +70C
Operating Humidity	5 to 95% Condensing
