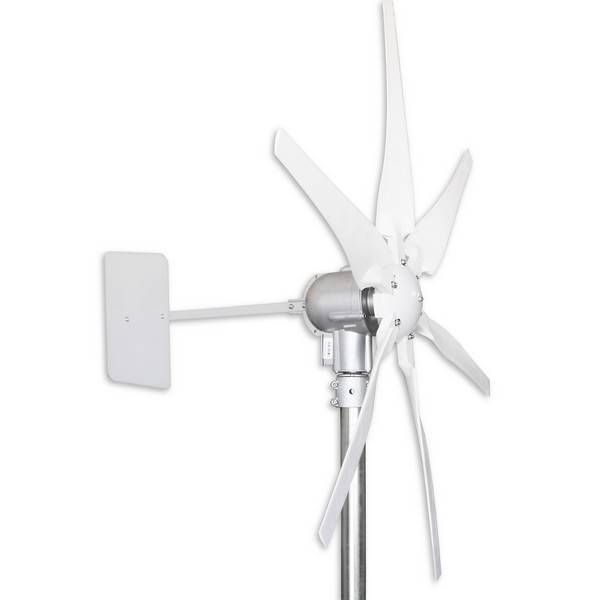

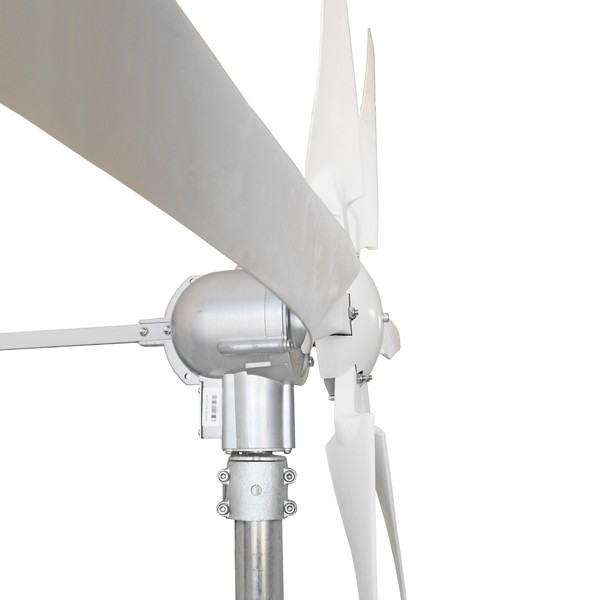

The MW Series Wind Turbines from MacroWind Systems are lightweight at less than 8.5kg and are designed for ease of installation and long service life.

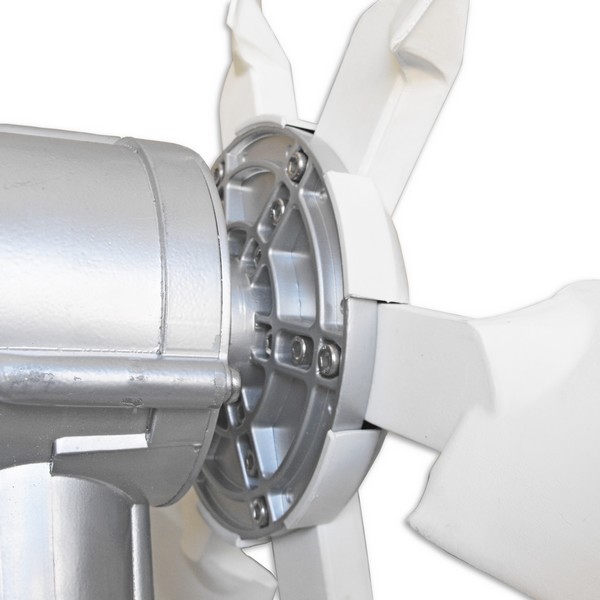

The generator is a very low cogging force design for better performance in light winds and is packaged in a fully sealed die cast anodized aluminum enclosure.

There are no brushes to wear out or cause electrical noise and the bearings are sealed so the system is maintenance free.

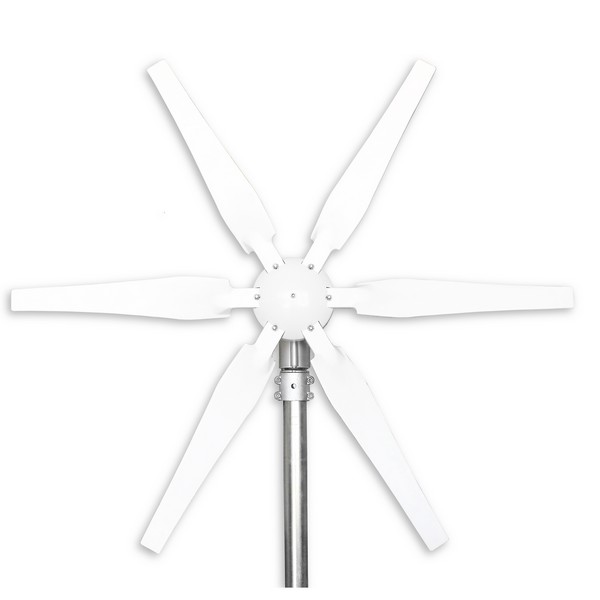

The blades are glass reinforced polypropylene for high strength, UV resistance and fatigue resistance.

The permanent magnets used are Neodymium Iron Boron (NdFeB) for higher power output.

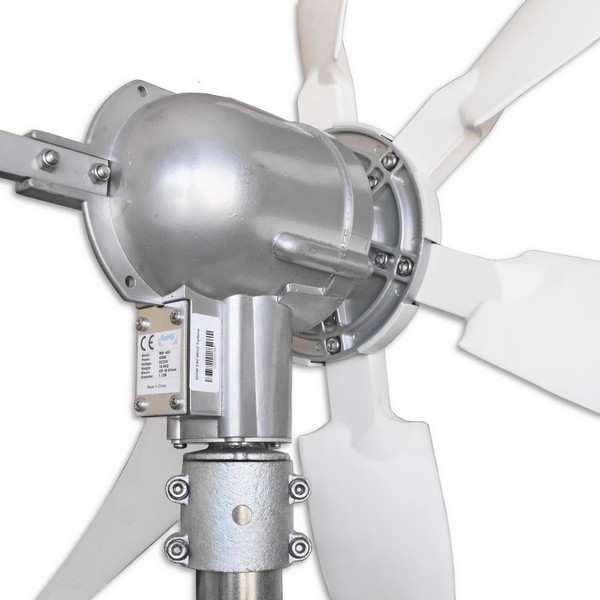

The mounting is to the top of a 51mm (2”) OD standard pole. The mount system is a vibration isolation type to minimize vibrations being carried down the mounting pole.

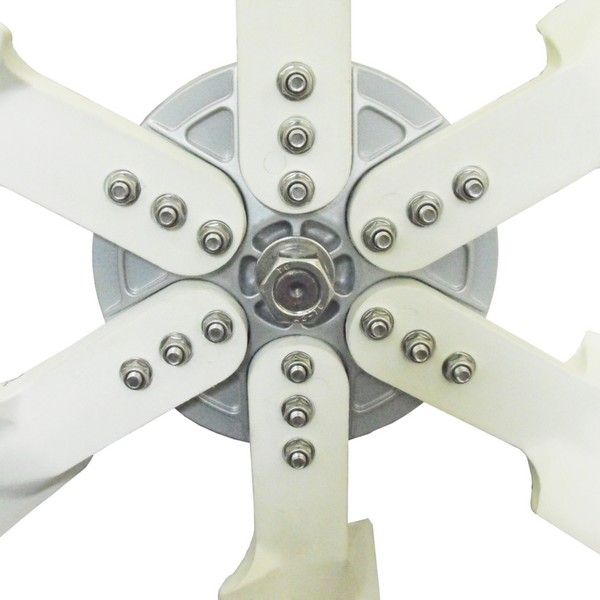

The hardware used is stainless steel for corrosion protection.

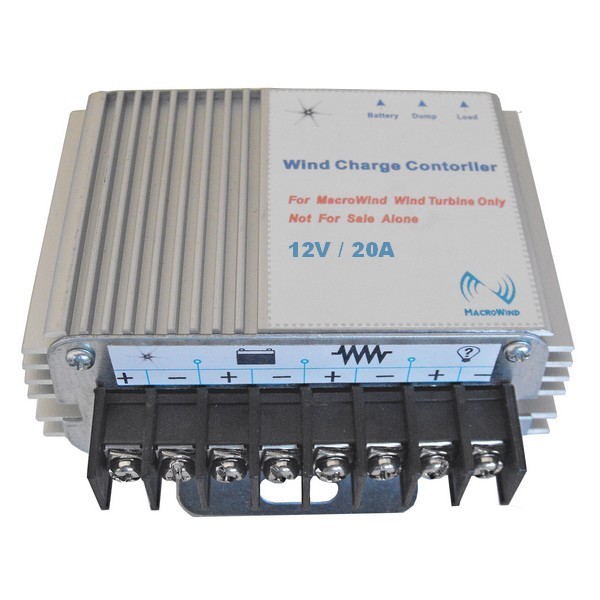

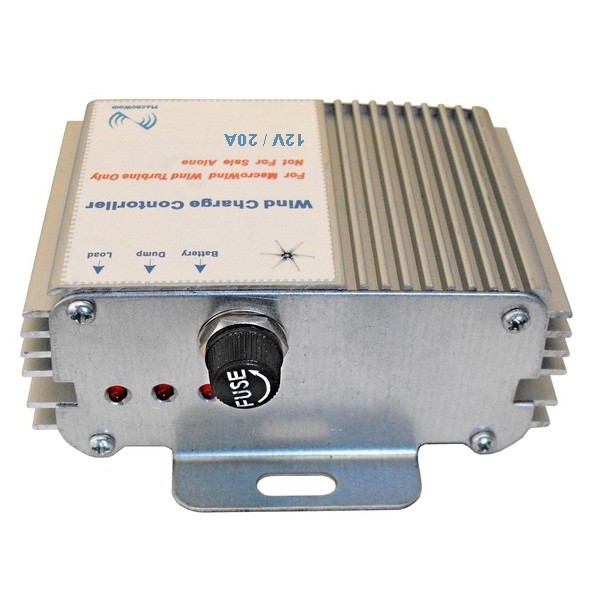

Charge controller included.

Product Links:

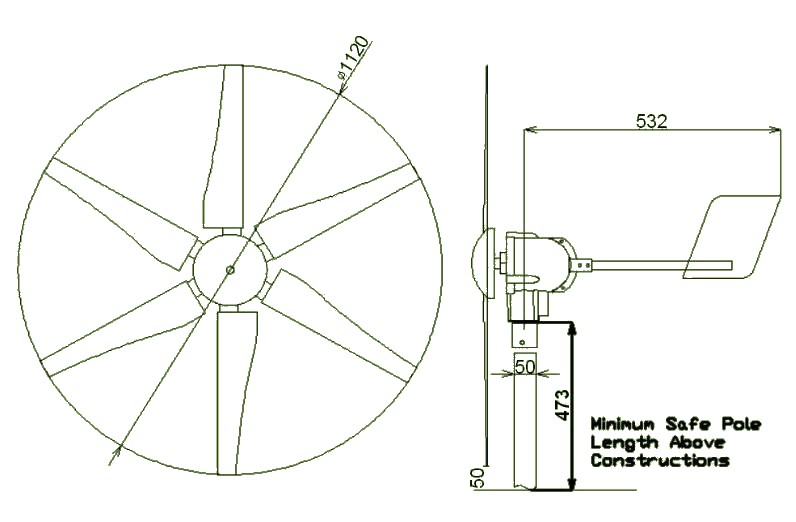

Product Page	Dimensions	Turbine Manual	Controller Manual
Certifications

Features:

• Wind Turbine startup wind speed of 2.1m/s (4.5mph)
• Smooth and quiet running maintenance free sealed turbine
• Sealed die cast aluminum housing for protection from harsh environments
• Very light and compact
• Easy Installation and Maintenance Free Operation
• Electronic over-speed protection
• Charges batteries from flat

Applications :

• Battery Charging Applications
• Surveillance Cameras
• Wireless Base Stations
• Electric Gate Openers, Electric Fences
• Street Lamps and Signs
• Remote Cabins and buildings
• Boats, RV’s and static caravans
• Security Systems

Additional Images:
